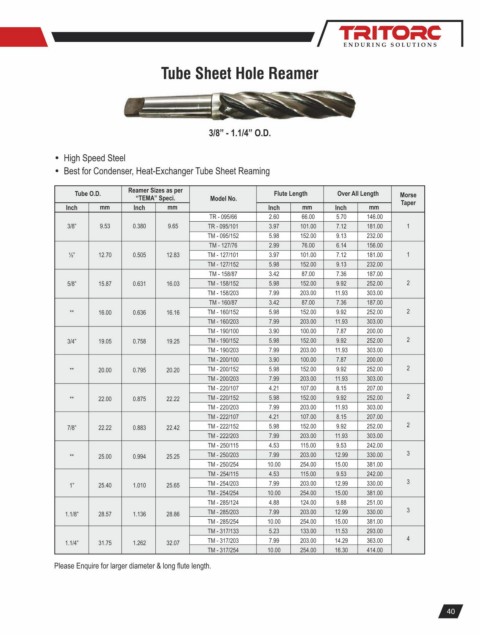

Tube Sheet Hole Reamer

3/8” - 1.1/4” O.D.

Ÿ High Speed Steel
Ÿ Best for Condenser, Heat-Exchanger Tube Sheet Reaming

Reamer Sizes as per
Tube O.D. Flute Length Over All Length Morse
“TEMA” Speci. Model No.
Taper
Inch mm Inch mm Inch mm Inch mm
TR - 095/66 2.60 66.00 5.70 146.00
3/8” 9.53 0.380 9.65 TR - 095/101 3.97 101.00 7.12 181.00 1
TM - 095/152 5.98 152.00 9.13 232.00
TM - 127/76 2.99 76.00 6.14 156.00
½” 12.70 0.505 12.83 TM - 127/101 3.97 101.00 7.12 181.00 1
TM - 127/152 5.98 152.00 9.13 232.00
TM - 158/87 3.42 87.00 7.36 187.00
5/8” 15.87 0.631 16.03 TM - 158/152 5.98 152.00 9.92 252.00 2
TM - 158/203 7.99 203.00 11.93 303.00
TM - 160/87 3.42 87.00 7.36 187.00
** 16.00 0.636 16.16 TM - 160/152 5.98 152.00 9.92 252.00 2
TM - 160/203 7.99 203.00 11.93 303.00
TM - 190/100 3.90 100.00 7.87 200.00
3/4” 19.05 0.758 19.25 TM - 190/152 5.98 152.00 9.92 252.00 2
TM - 190/203 7.99 203.00 11.93 303.00
TM - 200/100 3.90 100.00 7.87 200.00
** 20.00 0.795 20.20 TM - 200/152 5.98 152.00 9.92 252.00 2
TM - 200/203 7.99 203.00 11.93 303.00
TM - 220/107 4.21 107.00 8.15 207.00
** 22.00 0.875 22.22 TM - 220/152 5.98 152.00 9.92 252.00 2
TM - 220/203 7.99 203.00 11.93 303.00
TM - 222/107 4.21 107.00 8.15 207.00
7/8” 22.22 0.883 22.42 TM - 222/152 5.98 152.00 9.92 252.00 2
TM - 222/203 7.99 203.00 11.93 303.00
TM - 250/115 4.53 115.00 9.53 242.00
** 25.00 0.994 25.25 TM - 250/203 7.99 203.00 12.99 330.00 3
TM - 250/254 10.00 254.00 15.00 381.00
TM - 254/115 4.53 115.00 9.53 242.00
1” 25.40 1.010 25.65 TM - 254/203 7.99 203.00 12.99 330.00 3
TM - 254/254 10.00 254.00 15.00 381.00
TM - 285/124 4.88 124.00 9.88 251.00
1.1/8” 28.57 1.136 28.86 TM - 285/203 7.99 203.00 12.99 330.00 3
TM - 285/254 10.00 254.00 15.00 381.00
TM - 317/133 5.23 133.00 11.53 293.00
1.1/4” 31.75 1.262 32.07 TM - 317/203 7.99 203.00 14.29 363.00 4
TM - 317/254 10.00 254.00 16.30 414.00
Please Enquire for larger diameter & long flute length.
