P. 41

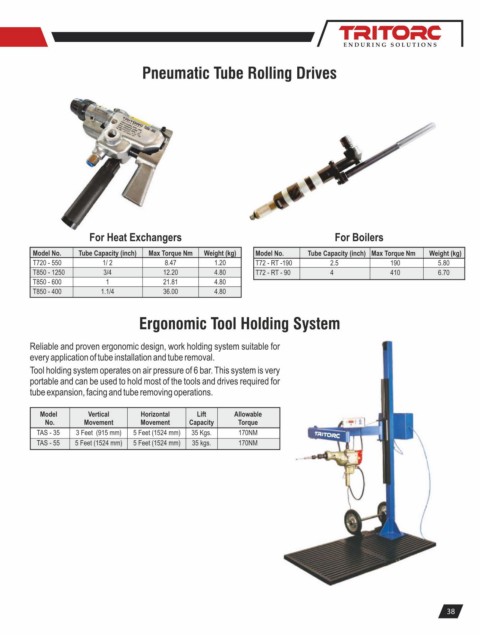

Pneumatic Tube Rolling Drives
























                       For Heat Exchangers                                          For Boilers

         Model No.   Tube Capacity (inch)   Max Torque Nm   Weight (kg)  Model No.         Tube Capacity (inch)  Max Torque Nm   Weight (kg)
         T720 - 550       1/ 2            8.47        1.20      T72 - RT -190      2.5            190         5.80
         T850 - 1250       3/4           12.20        4.80      T72 - RT - 90      4              410         6.70
         T850 - 600        1             21.81        4.80
         T850 - 400       1.1/4          36.00        4.80


                                   Ergonomic Tool Holding System


        Reliable and proven ergonomic design, work holding system suitable for
        every application of tube installation and tube removal.
        Tool holding system operates on air pressure of 6 bar. This system is very
        portable and can be used to hold most of the tools and drives required for
        tube expansion, facing and tube removing operations.


            Model       Vertical    Horizontal    Lift     Allowable
               No.      Movement    Movement    Capacity    Torque
          TAS - 35     3 Feet  (915 mm)    5 Feet (1524 mm)   35 Kgs.   170NM
          TAS - 55     5 Feet (1524 mm)    5 Feet (1524 mm)   35 kgs.   170NM
