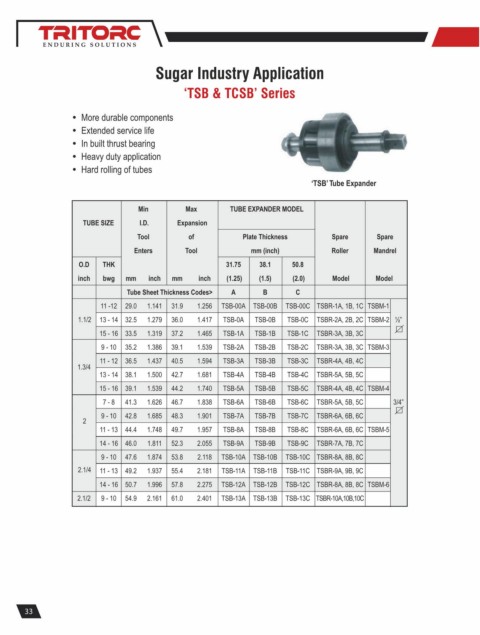

Sugar Industry Application

‘TSB & TCSB’ Series

Ÿ More durable components
Ÿ Extended service life
Ÿ In built thrust bearing
Ÿ Heavy duty application
Ÿ Hard rolling of tubes
‘TSB’ Tube Expander

Min Max TUBE EXPANDER MODEL
TUBE SIZE I.D. Expansion
Tool of Plate Thickness Spare Spare
Enters Tool mm (inch) Roller Mandrel

O.D THK 31.75 38.1 50.8
inch bwg mm inch mm inch (1.25) (1.5) (2.0) Model Model
Tube Sheet Thickness Codes> A B C
11 -12 29.0 1.141 31.9 1.256 TSB-00A TSB-00B TSB-00C TSBR-1A, 1B, 1C TSBM-1

1.1/2 13 - 14 32.5 1.279 36.0 1.417 TSB-0A TSB-0B TSB-0C TSBR-2A, 2B, 2C TSBM-2 ½”
15 - 16 33.5 1.319 37.2 1.465 TSB-1A TSB-1B TSB-1C TSBR-3A, 3B, 3C
9 - 10 35.2 1.386 39.1 1.539 TSB-2A TSB-2B TSB-2C TSBR-3A, 3B, 3C TSBM-3

11 - 12 36.5 1.437 40.5 1.594 TSB-3A TSB-3B TSB-3C TSBR-4A, 4B, 4C
1.3/4
13 - 14 38.1 1.500 42.7 1.681 TSB-4A TSB-4B TSB-4C TSBR-5A, 5B, 5C
15 - 16 39.1 1.539 44.2 1.740 TSB-5A TSB-5B TSB-5C TSBR-4A, 4B, 4C TSBM-4
7 - 8 41.3 1.626 46.7 1.838 TSB-6A TSB-6B TSB-6C TSBR-5A, 5B, 5C 3/4”
9 - 10 42.8 1.685 48.3 1.901 TSB-7A TSB-7B TSB-7C TSBR-6A, 6B, 6C
2
11 - 13 44.4 1.748 49.7 1.957 TSB-8A TSB-8B TSB-8C TSBR-6A, 6B, 6C TSBM-5
14 - 16 46.0 1.811 52.3 2.055 TSB-9A TSB-9B TSB-9C TSBR-7A, 7B, 7C
9 - 10 47.6 1.874 53.8 2.118 TSB-10A TSB-10B TSB-10C TSBR-8A, 8B, 8C

2.1/4 11 - 13 49.2 1.937 55.4 2.181 TSB-11A TSB-11B TSB-11C TSBR-9A, 9B, 9C
14 - 16 50.7 1.996 57.8 2.275 TSB-12A TSB-12B TSB-12C TSBR-8A, 8B, 8C TSBM-6
2.1/2 9 - 10 54.9 2.161 61.0 2.401 TSB-13A TSB-13B TSB-13C TSBR-10A,10B,10C
