P. 32

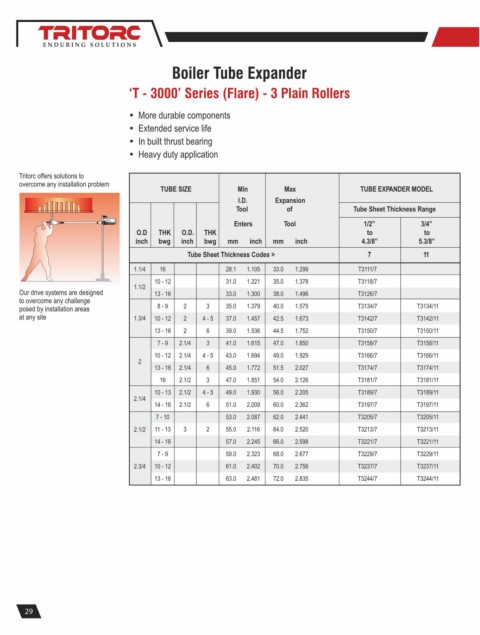

Boiler Tube Expander


                                 ‘T - 3000’ Series (Flare) - 3 Plain Rollers

                                 Ÿ More durable components
                                 Ÿ Extended service life
                                 Ÿ In built thrust bearing
                                 Ÿ Heavy duty application


      Tritorc offers solutions to
      overcome any installation problem
                                         TUBE SIZE          Min         Max               TUBE EXPANDER MODEL
                                                            I.D.     Expansion
                                                            Tool        of               Tube Sheet Thickness Range
                                                           Enters      Tool                1/2”           3/4”
                                   O.D  THK   O.D.  THK                                     to            to
                                   inch  bwg  inch  bwg  mm    inch  mm   inch             4.3/8”        5.3/8”
                                               Tube Sheet Thickness Codes >                 7             11
                                  1.1/4  16              28.1  1.105  33.0  1.299         T3111/7
                                       10 - 12           31.0  1.221  35.0  1.378         T3118/7
                                  1.1/2
      Our drive systems are designed   13 - 16           33.0  1.300  38.0  1.496         T3126/7
      to overcome any challenge
      posed by installation areas       8 - 9  2    3    35.0  1.379  40.0  1.575         T3134/7        T3134/11
      at any site                 1.3/4  10 - 12  2  4 - 5  37.0  1.457  42.5  1.673      T3142/7        T3142/11
                                       13 - 16  2   6    39.0  1.536  44.5  1.752         T3150/7        T3150/11
                                        7 - 9  2.1/4  3  41.0  1.615  47.0  1.850         T3158/7        T3158/11
                                       10 - 12  2.1/4  4 - 5  43.0  1.694  49.0  1.929    T3166/7        T3166/11
                                   2
                                       13 - 16  2.1/4  6  45.0  1.772  51.5  2.027        T3174/7        T3174/11
                                         16  2.1/2  3    47.0  1.851  54.0  2.126         T3181/7        T3181/11
                                       10 - 13  2.1/2  4 - 5  49.0  1.930  56.0  2.205    T3189/7        T3189/11
                                  2.1/4
                                       14 - 16  2.1/2  6  51.0  2.009  60.0  2.362        T3197/7        T3197/11
                                        7 - 10           53.0  2.087  62.0  2.441         T3205/7        T3205/11
                                  2.1/2  11 - 13  3  2   55.0  2.116  64.0  2.520         T3213/7        T3213/11
                                       14 - 16           57.0  2.245  66.0  2.598         T3221/7        T3221/11
                                        7 - 9            59.0  2.323  68.0  2.677         T3229/7        T3229/11
                                  2.3/4  10 - 12         61.0  2.402  70.0  2.756         T3237/7        T3237/11
                                       13 - 16           63.0  2.481  72.0  2.835         T3244/7        T3244/11
