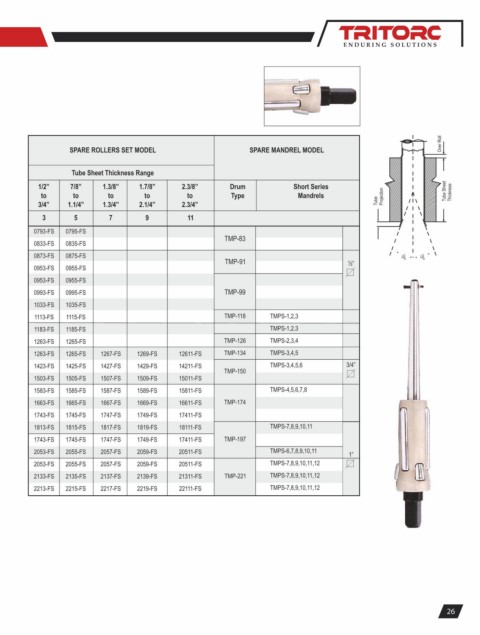

Page 29 - Tube Tool Catalogue

Over Roll
SPARE ROLLERS SET MODEL SPARE MANDREL MODEL

Tube Sheet Thickness Range
1/2” 7/8” 1.3/8” 1.7/8” 2.3/8” Drum Short Series
to to to to to Type Mandrels Projection Tube Sheet Thickness
3/4” 1.1/4” 1.3/4” 2.1/4” 2.3/4” Tube
3 5 7 9 11

0793-FS 0795-FS
TMP-83
0833-FS 0835-FS
0873-FS 0875-FS 15 o 15 o
TMP-91 ½”
0953-FS 0955-FS
0953-FS 0955-FS
0993-FS 0995-FS TMP-99
1033-FS 1035-FS
1113-FS 1115-FS TMP-118 TMPS-1,2,3
1183-FS 1185-FS TMPS-1,2,3
1263-FS 1265-FS TMP-126 TMPS-2,3,4
1263-FS 1265-FS 1267-FS 1269-FS 12611-FS TMP-134 TMPS-3,4,5
1423-FS 1425-FS 1427-FS 1429-FS 14211-FS TMPS-3,4,5,6 3/4”
TMP-150
1503-FS 1505-FS 1507-FS 1509-FS 15011-FS
1583-FS 1585-FS 1587-FS 1589-FS 15811-FS TMPS-4,5,6,7,8
1663-FS 1665-FS 1667-FS 1669-FS 16611-FS TMP-174
1743-FS 1745-FS 1747-FS 1749-FS 17411-FS
1813-FS 1815-FS 1817-FS 1819-FS 18111-FS TMPS-7,8,9,10,11
1743-FS 1745-FS 1747-FS 1749-FS 17411-FS TMP-197
2053-FS 2055-FS 2057-FS 2059-FS 20511-FS TMPS-6,7,8,9,10,11 1”
2053-FS 2055-FS 2057-FS 2059-FS 20511-FS TMPS-7,8,9,10,11,12
2133-FS 2135-FS 2137-FS 2139-FS 21311-FS TMP-221 TMPS-7,8,9,10,11,12
2213-FS 2215-FS 2217-FS 2219-FS 22111-FS TMPS-7,8,9,10,11,12

26
