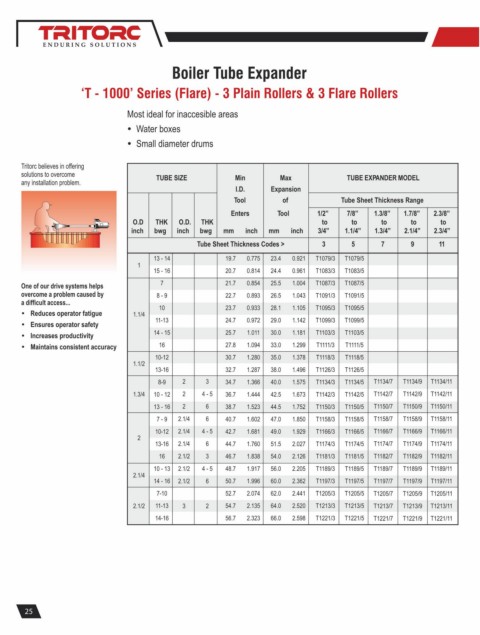

Boiler Tube Expander

‘T - 1000’ Series (Flare) - 3 Plain Rollers & 3 Flare Rollers

Most ideal for inaccesible areas
Ÿ Water boxes

Ÿ Small diameter drums

Tritorc believes in offering
solutions to overcome TUBE SIZE Min Max TUBE EXPANDER MODEL
any installation problem.
I.D. Expansion
Tool of Tube Sheet Thickness Range
Enters Tool 1/2” 7/8” 1.3/8” 1.7/8” 2.3/8”
O.D THK O.D. THK to to to to to
inch bwg inch bwg mm inch mm inch 3/4” 1.1/4” 1.3/4” 2.1/4” 2.3/4”
Tube Sheet Thickness Codes > 3 5 7 9 11

13 - 14 19.7 0.775 23.4 0.921 T1079/3 T1079/5
1
15 - 16 20.7 0.814 24.4 0.961 T1083/3 T1083/5
One of our drive systems helps 7 21.7 0.854 25.5 1.004 T1087/3 T1087/5
overcome a problem caused by 8 - 9 22.7 0.893 26.5 1.043 T1091/3 T1091/5
a difficult access...
10 23.7 0.933 28.1 1.105 T1095/3 T1095/5
Ÿ Reduces operator fatigue 1.1/4
11-13 24.7 0.972 29.0 1.142 T1099/3 T1099/5
Ÿ Ensures operator safety
14 - 15 25.7 1.011 30.0 1.181 T1103/3 T1103/5
Ÿ Increases productivity
Ÿ Maintains consistent accuracy 16 27.8 1.094 33.0 1.299 T1111/3 T1111/5
10-12 30.7 1.280 35.0 1.378 T1118/3 T1118/5
1.1/2
13-16 32.7 1.287 38.0 1.496 T1126/3 T1126/5
8-9 2 3 34.7 1.366 40.0 1.575 T1134/3 T1134/5 T1134/7 T1134/9 T1134/11
1.3/4 10 - 12 2 4 - 5 36.7 1.444 42.5 1.673 T1142/3 T1142/5 T1142/7 T1142/9 T1142/11
13 - 16 2 6 38.7 1.523 44.5 1.752 T1150/3 T1150/5 T1150/7 T1150/9 T1150/11
7 - 9 2.1/4 6 40.7 1.602 47.0 1.850 T1158/3 T1158/5 T1158/7 T1158/9 T1158/11
10-12 2.1/4 4 - 5 42.7 1.681 49.0 1.929 T1166/3 T1166/5 T1166/7 T1166/9 T1166/11
2
13-16 2.1/4 6 44.7 1.760 51.5 2.027 T1174/3 T1174/5 T1174/7 T1174/9 T1174/11
16 2.1/2 3 46.7 1.838 54.0 2.126 T1181/3 T1181/5 T1182/7 T1182/9 T1182/11
10 - 13 2.1/2 4 - 5 48.7 1.917 56.0 2.205 T1189/3 T1189/5 T1189/7 T1189/9 T1189/11
2.1/4
14 - 16 2.1/2 6 50.7 1.996 60.0 2.362 T1197/3 T1197/5 T1197/7 T1197/9 T1197/11
7-10 52.7 2.074 62.0 2.441 T1205/3 T1205/5 T1205/7 T1205/9 T1205/11
2.1/2 11-13 3 2 54.7 2.135 64.0 2.520 T1213/3 T1213/5 T1213/7 T1213/9 T1213/11
14-16 56.7 2.323 66.0 2.598 T1221/3 T1221/5 T1221/7 T1221/9 T1221/11
