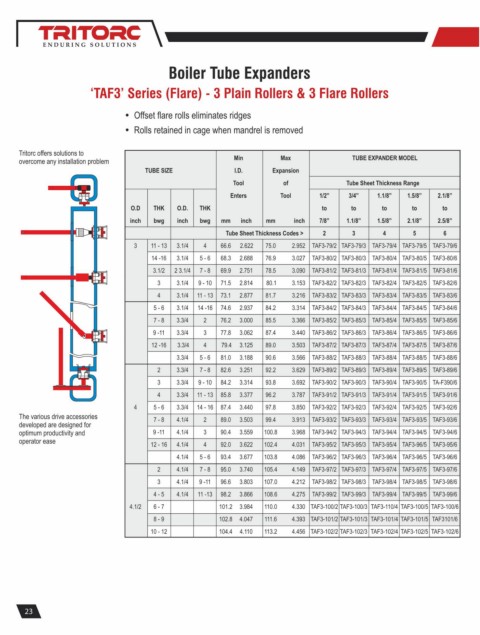

Page 26 - Tube Tool Catalogue

Boiler Tube Expanders

‘TAF3’ Series (Flare) - 3 Plain Rollers & 3 Flare Rollers

Ÿ Offset flare rolls eliminates ridges

Ÿ Rolls retained in cage when mandrel is removed

Tritorc offers solutions to Min Max TUBE EXPANDER MODEL
overcome any installation problem
TUBE SIZE I.D. Expansion
Tool of Tube Sheet Thickness Range
Enters Tool 1/2” 3/4” 1.1/8” 1.5/8” 2.1/8”
O.D THK O.D. THK to to to to to
inch bwg inch bwg mm inch mm inch 7/8” 1.1/8” 1.5/8” 2.1/8” 2.5/8”
Tube Sheet Thickness Codes > 2 3 4 5 6
3 11 - 13 3.1/4 4 66.6 2.622 75.0 2.952 TAF3-79/2 TAF3-79/3 TAF3-79/4 TAF3-79/5 TAF3-79/6
14 -16 3.1/4 5 - 6 68.3 2.688 76.9 3.027 TAF3-80/2 TAF3-80/3 TAF3-80/4 TAF3-80/5 TAF3-80/6
3.1/2 2 3.1/4 7 - 8 69.9 2.751 78.5 3.090 TAF3-81/2 TAF3-81/3 TAF3-81/4 TAF3-81/5 TAF3-81/6
3 3.1/4 9 - 10 71.5 2.814 80.1 3.153 TAF3-82/2 TAF3-82/3 TAF3-82/4 TAF3-82/5 TAF3-82/6
4 3.1/4 11 - 13 73.1 2.877 81.7 3.216 TAF3-83/2 TAF3-83/3 TAF3-83/4 TAF3-83/5 TAF3-83/6
5 - 6 3.1/4 14 -16 74.6 2.937 84.2 3.314 TAF3-84/2 TAF3-84/3 TAF3-84/4 TAF3-84/5 TAF3-84/6
7 - 8 3.3/4 2 76.2 3.000 85.5 3.366 TAF3-85/2 TAF3-85/3 TAF3-85/4 TAF3-85/5 TAF3-85/6
9 -11 3.3/4 3 77.8 3.062 87.4 3.440 TAF3-86/2 TAF3-86/3 TAF3-86/4 TAF3-86/5 TAF3-86/6
12 -16 3.3/4 4 79.4 3.125 89.0 3.503 TAF3-87/2 TAF3-87/3 TAF3-87/4 TAF3-87/5 TAF3-87/6
3.3/4 5 - 6 81.0 3.188 90.6 3.566 TAF3-88/2 TAF3-88/3 TAF3-88/4 TAF3-88/5 TAF3-88/6
2 3.3/4 7 - 8 82.6 3.251 92.2 3.629 TAF3-89/2 TAF3-89/3 TAF3-89/4 TAF3-89/5 TAF3-89/6
3 3.3/4 9 - 10 84.2 3.314 93.8 3.692 TAF3-90/2 TAF3-90/3 TAF3-90/4 TAF3-90/5 TA-F390/6
4 3.3/4 11 - 13 85.8 3.377 96.2 3.787 TAF3-91/2 TAF3-91/3 TAF3-91/4 TAF3-91/5 TAF3-91/6
4 5 - 6 3.3/4 14 - 16 87.4 3.440 97.8 3.850 TAF3-92/2 TAF3-92/3 TAF3-92/4 TAF3-92/5 TAF3-92/6
The various drive accessories 7 - 8 4.1/4 2 89.0 3.503 99.4 3.913 TAF3-93/2 TAF3-93/3 TAF3-93/4 TAF3-93/5 TAF3-93/6
developed are designed for
optimum productivity and 9 -11 4.1/4 3 90.4 3.559 100.8 3.968 TAF3-94/2 TAF3-94/3 TAF3-94/4 TAF3-94/5 TAF3-94/6
operator ease
12 - 16 4.1/4 4 92.0 3.622 102.4 4.031 TAF3-95/2 TAF3-95/3 TAF3-95/4 TAF3-96/5 TAF3-95/6
4.1/4 5 - 6 93.4 3.677 103.8 4.086 TAF3-96/2 TAF3-96/3 TAF3-96/4 TAF3-96/5 TAF3-96/6
2 4.1/4 7 - 8 95.0 3.740 105.4 4.149 TAF3-97/2 TAF3-97/3 TAF3-97/4 TAF3-97/5 TAF3-97/6
3 4.1/4 9 -11 96.6 3.803 107.0 4.212 TAF3-98/2 TAF3-98/3 TAF3-98/4 TAF3-98/5 TAF3-98/6
4 - 5 4.1/4 11 -13 98.2 3.866 108.6 4.275 TAF3-99/2 TAF3-99/3 TAF3-99/4 TAF3-99/5 TAF3-99/6
4.1/2 6 - 7 101.2 3.984 110.0 4.330 TAF3-100/2 TAF3-100/3 TAF3-110/4 TAF3-100/5 TAF3-100/6
8 - 9 102.8 4.047 111.6 4.393 TAF3-101/2 TAF3-101/3 TAF3-101/4 TAF3-101/5 TAF3101/6
10 - 12 104.4 4.110 113.2 4.456 TAF3-102/2 TAF3-102/3 TAF3-102/4 TAF3-102/5 TAF3-102/6
