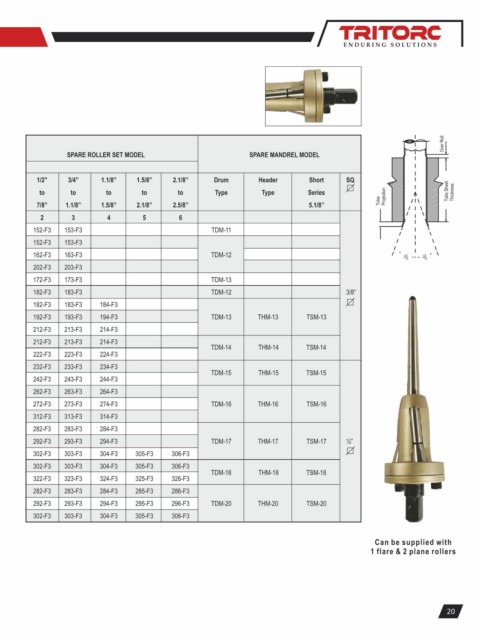

Page 23 - Tube Tool Catalogue

Over Roll

SPARE ROLLER SET MODEL SPARE MANDREL MODEL

1/2” 3/4” 1.1/8” 1.5/8” 2.1/8” Drum Header Short SQ
to to to to to Type Type Series Tube Sheet Thickness
Tube Projection
7/8” 1.1/8” 1.5/8” 2.1/8” 2.5/8” 5.1/8”
2 3 4 5 6
152-F3 153-F3 TDM-11
152-F3 153-F3
162-F3 163-F3 TDM-12 15 o 15 o
202-F3 203-F3
172-F3 173-F3 TDM-13
182-F3 183-F3 TDM-12 3/8”
182-F3 183-F3 184-F3
192-F3 193-F3 194-F3 TDM-13 THM-13 TSM-13
212-F3 213-F3 214-F3
212-F3 213-F3 214-F3
TDM-14 THM-14 TSM-14
222-F3 223-F3 224-F3
232-F3 233-F3 234-F3
TDM-15 THM-15 TSM-15
242-F3 243-F3 244-F3
262-F3 263-F3 264-F3
272-F3 273-F3 274-F3 TDM-16 THM-16 TSM-16
312-F3 313-F3 314-F3
282-F3 283-F3 284-F3
292-F3 293-F3 294-F3 TDM-17 THM-17 TSM-17 ½”
302-F3 303-F3 304-F3 305-F3 306-F3
302-F3 303-F3 304-F3 305-F3 306-F3
TDM-18 THM-18 TSM-18
322-F3 323-F3 324-F3 325-F3 326-F3
282-F3 283-F3 284-F3 285-F3 286-F3
292-F3 293-F3 294-F3 295-F3 296-F3 TDM-20 THM-20 TSM-20
302-F3 303-F3 304-F3 305-F3 306-F3

Can be supplied with
1 flare & 2 plane rollers

20
