P. 34

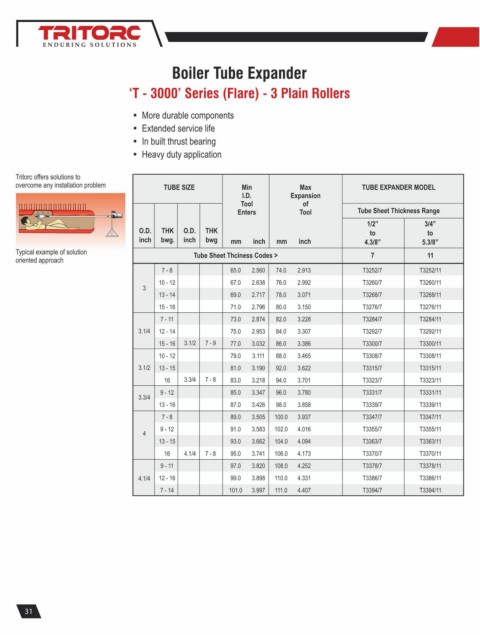

Boiler Tube Expander


                                 ‘T - 3000’ Series (Flare) - 3 Plain Rollers

                                  Ÿ More durable components
                                  Ÿ Extended service life
                                  Ÿ In built thrust bearing
                                  Ÿ Heavy duty application


     Tritorc offers solutions to
     overcome any installation problem    TUBE SIZE          Min           Max             TUBE EXPANDER MODEL
                                                             I.D.        Expansion
                                                             Tool           of
                                                            Enters         Tool           Tube Sheet Thickness Range
                                                                                            1/2”          3/4”
                                   O.D.  THK   O.D.  THK                                     to            to
                                   inch  bwg.  inch  bwg  mm    inch  mm   inch             4.3/8”        5.3/8”
     Typical example of solution                 Tube Sheet Thciness Codes >                 7             11
     oriented approach
                                         7 - 8            65.0  2.560  74.0  2.913         T3252/7       T3252/11
                                        10 - 12           67.0  2.638  76.0  2.992         T3260/7       T3260/11
                                    3
                                        13 - 14           69.0  2.717  78.0  3.071         T3268/7       T3268/11
                                        15 - 16           71.0  2.796  80.0  3.150         T3276/7       T3276/11
                                         7 - 11           73.0  2.874  82.0  3.228         T3284/7       T3284/11
                                   3.1/4  12 - 14         75.0  2.953  84.0  3.307         T3292/7       T3292/11
                                        15 - 16  3.1/2  7 - 9  77.0  3.032  86.0  3.386    T3300/7       T3300/11
                                        10 - 12           79.0  3.111  88.0  3.465         T3308/7       T3308/11
                                   3.1/2  13 - 15         81.0  3.190  92.0  3.622         T3315/7       T3315/11
                                          16   3.3/4  7 - 8  83.0  3.218  94.0  3.701      T3323/7       T3323/11
                                         9 - 12           85.0  3.347  96.0  3.780         T3331/7       T3331/11
                                   3.3/4
                                        13 - 16           87.0  3.426  98.0  3.858         T3339/7       T3339/11
                                         7 - 8            89.0  3.505  100.0  3.937        T3347/7       T3347/11
                                         9 - 12           91.0  3.583  102.0  4.016        T3355/7       T3355/11
                                    4
                                        13 - 15           93.0  3.662  104.0  4.094        T3363/7       T3363/11
                                          16   4.1/4  7 - 8  95.0  3.741  106.0  4.173     T3370/7       T3370/11
                                         9 - 11           97.0  3.820  108.0  4.252        T3378/7       T3378/11
                                   4.1/4  12 - 16         99.0  3.898  110.0  4.331        T3386/7       T3386/11
                                   4.1/2  7 - 14          101.0  3.997  111.0  4.407       T3394/7       T3394/11
