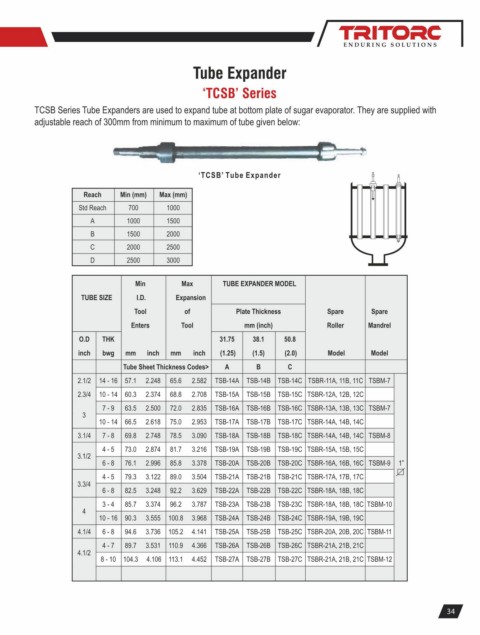

Tube Expander

‘TCSB’ Series
TCSB Series Tube Expanders are used to expand tube at bottom plate of sugar evaporator. They are supplied with
adjustable reach of 300mm from minimum to maximum of tube given below:

‘TCSB’ Tube Expander

Reach Min (mm) Max (mm)
Std Reach 700 1000
A 1000 1500
B 1500 2000
C 2000 2500
D 2500 3000

Min Max TUBE EXPANDER MODEL
TUBE SIZE I.D. Expansion
Tool of Plate Thickness Spare Spare
Enters Tool mm (inch) Roller Mandrel
O.D THK 31.75 38.1 50.8
inch bwg mm inch mm inch (1.25) (1.5) (2.0) Model Model
Tube Sheet Thickness Codes> A B C

2.1/2 14 - 16 57.1 2.248 65.6 2.582 TSB-14A TSB-14B TSB-14C TSBR-11A, 11B, 11C TSBM-7
2.3/4 10 - 14 60.3 2.374 68.8 2.708 TSB-15A TSB-15B TSB-15C TSBR-12A, 12B, 12C
7 - 9 63.5 2.500 72.0 2.835 TSB-16A TSB-16B TSB-16C TSBR-13A, 13B, 13C TSBM-7
3
10 - 14 66.5 2.618 75.0 2.953 TSB-17A TSB-17B TSB-17C TSBR-14A, 14B, 14C
3.1/4 7 - 8 69.8 2.748 78.5 3.090 TSB-18A TSB-18B TSB-18C TSBR-14A, 14B, 14C TSBM-8
4 - 5 73.0 2.874 81.7 3.216 TSB-19A TSB-19B TSB-19C TSBR-15A, 15B, 15C
3.1/2
6 - 8 76.1 2.996 85.8 3.378 TSB-20A TSB-20B TSB-20C TSBR-16A, 16B, 16C TSBM-9 1”

4 - 5 79.3 3.122 89.0 3.504 TSB-21A TSB-21B TSB-21C TSBR-17A, 17B, 17C
3.3/4
6 - 8 82.5 3.248 92.2 3.629 TSB-22A TSB-22B TSB-22C TSBR-18A, 18B, 18C
3 - 4 85.7 3.374 96.2 3.787 TSB-23A TSB-23B TSB-23C TSBR-18A, 18B, 18C TSBM-10
4
10 - 16 90.3 3.555 100.8 3.968 TSB-24A TSB-24B TSB-24C TSBR-19A, 19B, 19C
4.1/4 6 - 8 94.6 3.736 105.2 4.141 TSB-25A TSB-25B TSB-25C TSBR-20A, 20B, 20C TSBM-11
4 - 7 89.7 3.531 110.9 4.366 TSB-26A TSB-26B TSB-26C TSBR-21A, 21B, 21C
4.1/2
8 - 10 104.3 4.106 113.1 4.452 TSB-27A TSB-27B TSB-27C TSBR-21A, 21B, 21C TSBM-12
