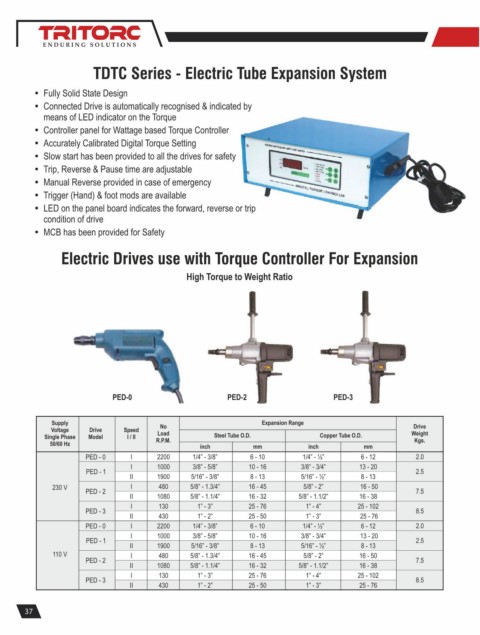

TDTC Series - Electric Tube Expansion System

Ÿ Fully Solid State Design
Ÿ Connected Drive is automatically recognised & indicated by
means of LED indicator on the Torque
Ÿ Controller panel for Wattage based Torque Controller
Ÿ Accurately Calibrated Digital Torque Setting
Ÿ Slow start has been provided to all the drives for safety
Ÿ Trip, Reverse & Pause time are adjustable
Ÿ Manual Reverse provided in case of emergency
Ÿ Trigger (Hand) & foot mods are available
Ÿ LED on the panel board indicates the forward, reverse or trip
condition of drive
Ÿ MCB has been provided for Safety

Electric Drives use with Torque Controller For Expansion

High Torque to Weight Ratio

PED-0 PED-2 PED-3

Supply Expansion Range
Voltage Drive Speed No Drive
Load
Single Phase Model I / II R.P.M. Steel Tube O.D. Copper Tube O.D. Weight
Kgs.
50/60 Hz inch mm inch mm
PED - 0 I 2200 1/4” - 3/8” 6 - 10 1/4” - ½” 6 - 12 2.0
I 1000 3/8” - 5/8” 10 - 16 3/8” - 3/4” 13 - 20
PED - 1 2.5
II 1900 5/16” - 3/8” 8 - 13 5/16” - ½” 8 - 13
230 V I 480 5/8” - 1.3/4” 16 - 45 5/8” - 2” 16 - 50
PED - 2 7.5
II 1080 5/8” - 1.1/4” 16 - 32 5/8” - 1.1/2” 16 - 38
I 130 1” - 3” 25 - 76 1” - 4” 25 - 102
PED - 3 8.5
II 430 1” - 2” 25 - 50 1” - 3” 25 - 76
PED - 0 I 2200 1/4” - 3/8” 6 - 10 1/4” - ½” 6 - 12 2.0
I 1000 3/8” - 5/8” 10 - 16 3/8” - 3/4” 13 - 20
PED - 1 2.5
II 1900 5/16” - 3/8” 8 - 13 5/16” - ½” 8 - 13
110 V I 480 5/8” - 1.3/4” 16 - 45 5/8” - 2” 16 - 50
PED - 2 7.5
II 1080 5/8” - 1.1/4” 16 - 32 5/8” - 1.1/2” 16 - 38
I 130 1” - 3” 25 - 76 1” - 4” 25 - 102
PED - 3 8.5
II 430 1” - 2” 25 - 50 1” - 3” 25 - 76
