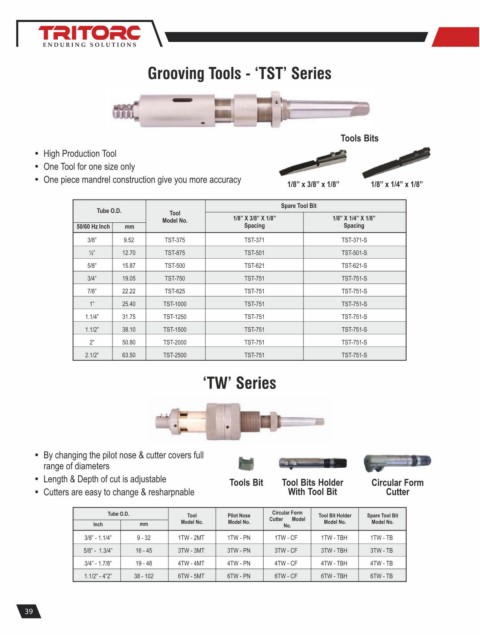

Grooving Tools - ‘TST’ Series









                                                                                      Tools Bits
         Ÿ High Production Tool
         Ÿ One Tool for one size only
         Ÿ One piece mandrel construction give you more accuracy
                                                                        1/8” x 3/8” x 1/8”   1/8” x 1/4” x 1/8”


                                                                       Spare Tool Bit
                         Tube O.D.         Tool
                                         Model No.         1/8” X 3/8” X 1/8”       1/8” X 1/4” X 1/8”
                    50/60 Hz  Inch  mm                        Spacing                 Spacing
                       3/8”     9.52      TST-375             TST-371                 TST-371-S
                       ½”      12.70      TST-875             TST-501                 TST-501-S
                       5/8”    15.87      TST-500             TST-621                 TST-621-S
                       3/4”    19.05      TST-750             TST-751                 TST-751-S
                       7/8”    22.22      TST-625             TST-751                 TST-751-S
                       1”      25.40     TST-1000             TST-751                 TST-751-S
                      1.1/4”   31.75     TST-1250             TST-751                 TST-751-S
                      1.1/2”   38.10     TST-1500             TST-751                 TST-751-S
                       2”      50.80     TST-2000             TST-751                 TST-751-S
                      2.1/2”   63.50     TST-2500             TST-751                 TST-751-S

                                                   ‘TW’ Series










         Ÿ By changing the pilot nose & cutter covers full
            range of diameters
         Ÿ Length & Depth of cut is adjustable            Tools Bit    Tool Bits Holder      Circular Form
         Ÿ Cutters are easy to change & resharpnable                    With Tool Bit            Cutter

                            Tube O.D.          Tool       Pilot Nose  Circular Form  Tool Bit Holder  Spare Tool Bit
                                              Model No.   Model No.  Cutter       Model  Model No.  Model No.
                        Inch        mm                                 No.
                      3/8” - 1.1/4”  9 - 32  1TW - 2MT   1TW - PN    1TW - CF    1TW - TBH   1TW - TB
                      5/8” -  1.3/4”  16 - 45  3TW - 3MT  3TW - PN   3TW - CF    3TW - TBH   3TW - TB
                      3/4” - 1.7/8”  19 - 48  4TW - 4MT  4TW - PN    4TW - CF    4TW - TBH   4TW - TB
                      1.1/2” - 4”2”  38 - 102  6TW - 5MT  6TW - PN   6TW - CF    6TW - TBH   6TW - TB
