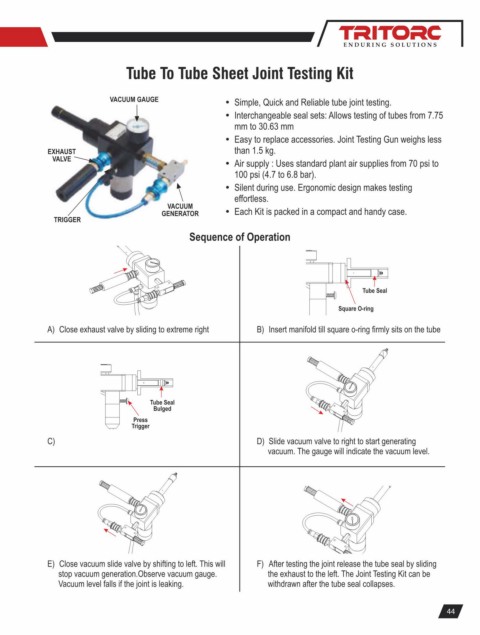

Tube To Tube Sheet Joint Testing Kit



                            VACUUM GAUGE
                                                         Ÿ Simple, Quick and Reliable tube joint testing.
                                                         Ÿ Interchangeable seal sets: Allows testing of tubes from 7.75
                                                           mm to 30.63 mm
                                                         Ÿ Easy to replace accessories. Joint Testing Gun weighs less
             EXHAUST                                       than 1.5 kg.
              VALVE
                                                         Ÿ Air supply : Uses standard plant air supplies from 70 psi to
                                                           100 psi (4.7 to 6.8 bar).
                                                         Ÿ Silent during use. Ergonomic design makes testing
                                                           effortless.
                                           VACUUM
                                         GENERATOR       Ÿ Each Kit is packed in a compact and handy case.
              TRIGGER
                                                Sequence of Operation







                                                                                           Tube Seal

                                                                                     Square O-ring
             A)  Close exhaust valve by sliding to extreme right  B)  Insert manifold till square o-ring firmly sits on the tube










                                      Tube Seal
                                       Bulged
                                  Press
                                  Trigger
             C)                                                  D)  Slide vacuum valve to right to start generating
                                                                   vacuum. The gauge will indicate the vacuum level.















             E)  Close vacuum slide valve by shifting to left. This will   F)  After testing the joint release the tube seal by sliding
               stop vacuum generation. Observe vacuum gauge.       the exhaust to the left. The Joint Testing Kit can be
               Vacuum level falls if the joint is leaking.         withdrawn after the tube seal collapses.
