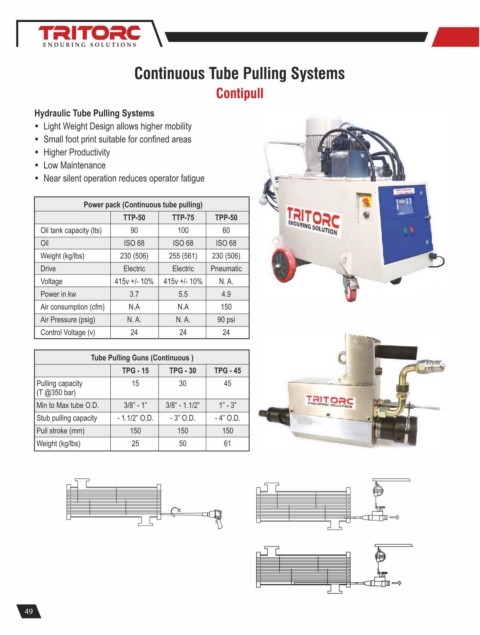

Continuous Tube Pulling Systems


                                                       Contipull

         Hydraulic Tube Pulling Systems
         Ÿ Light Weight Design allows higher mobility
         Ÿ Small foot print suitable for confined areas
         Ÿ Higher Productivity
         Ÿ Low Maintenance
         Ÿ Near silent operation reduces operator fatigue


                      Power pack (Continuous tube pulling)
                                TTP-50      TTP-75    TPP-50
           Oil tank capacity (lts)   90      100        60
           Oil                  ISO 68      ISO 68     ISO 68
           Weight (kg/lbs)     230 (506)   255 (561)   230 (506)
           Drive                Electric    Electric   Pneumatic
           Voltage           415v +/- 10%  415v +/- 10%   N. A.
           Power in kw           3.7         5.5        4.9
           Air consumption (cfm)   N.A       N.A        150
           Air Pressure (psig)   N. A.       N. A.     90 psi
           Control Voltage (v)   24           24        24


                        Tube Pulling Guns (Continuous )
                               TPG - 15    TPG - 30   TPG - 45
          Pulling capacity        15         30          45
          (T @350 bar)
          Min to Max tube O.D.    3/8” - 1”   3/8” - 1.1/2”   1” - 3”
          Stub pulling capacity   - 1.1/2” O.D.   - 3” O.D.   - 4” O.D.
          Pull stroke (mm)       150         150        150
          Weight (kg/lbs)         25         50          61
