Page 57 - Tube Tool Catalogue
P. 57

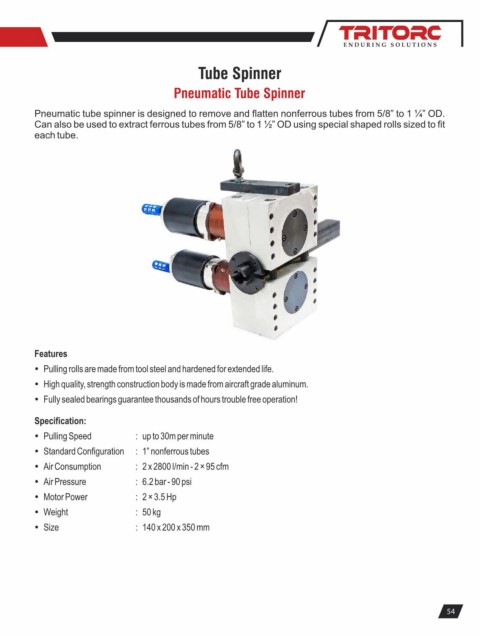

Tube Spinner


                                            Pneumatic Tube Spinner

         Pneumatic tube spinner is designed to remove and flatten nonferrous tubes from 5/8” to 1 ¼” OD.
         Can also be used to extract ferrous tubes from 5/8” to 1 ½” OD using special shaped rolls sized to fit
         each tube.
































         Features

         Ÿ Pulling rolls are made from tool steel and hardened for extended life.
         Ÿ High quality, strength construction body is made from aircraft grade aluminum.
         Ÿ Fully sealed bearings guarantee thousands of hours trouble free operation!


         Specification:
         Ÿ Pulling Speed           :  up to 30m per minute
         Ÿ Standard Configuration  :  1” nonferrous tubes

         Ÿ Air Consumption         :  2 x 2800 l/min - 2 × 95 cfm
         Ÿ Air Pressure            :  6.2 bar - 90 psi
         Ÿ Motor Power             :  2 × 3.5 Hp

         Ÿ Weight                  :  50 kg
         Ÿ Size                    :  140 x 200 x 350 mm











                                                                                                                54
