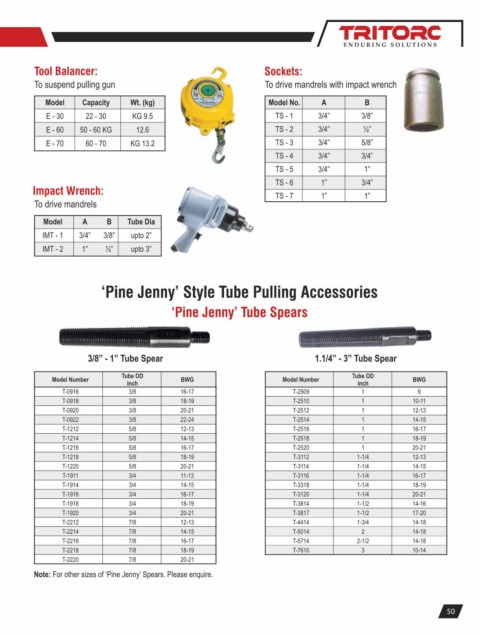

Page 53 - Tube Tool Catalogue

Tool Balancer: Sockets:
To suspend pulling gun To drive mandrels with impact wrench

Model Capacity Wt. (kg) Model No. A B

E - 30 22 - 30 KG 9.5 TS - 1 3/4” 3/8”
E - 60 50 - 60 KG 12.6 TS - 2 3/4” ½”
E - 70 60 - 70 KG 13.2 TS - 3 3/4” 5/8”
TS - 4 3/4” 3/4”
TS - 5 3/4” 1”
TS - 6 1” 3/4”
Impact Wrench:
TS - 7 1” 1”
To drive mandrels

Model A B Tube Dia
IMT - 1 3/4” 3/8” upto 2”
IMT - 2 1” ½” upto 3”

‘Pine Jenny’ Style Tube Pulling Accessories

‘Pine Jenny’ Tube Spears

3/8” - 1” Tube Spear 1.1/4” - 3” Tube Spear

Tube OD Tube OD
Model Number BWG Model Number BWG
inch inch
T-0916 3/8 16-17 T-2509 1 9
T-0918 3/8 18-19 T-2510 1 10-11
T-0920 3/8 20-21 T-2512 1 12-13
T-0922 3/8 22-24 T-2514 1 14-15
T-1212 5/8 12-13 T-2516 1 16-17
T-1214 5/8 14-15 T-2518 1 18-19
T-1216 5/8 16-17 T-2520 1 20-21
T-1218 5/8 18-19 T-3112 1-1/4 12-13
T-1220 5/8 20-21 T-3114 1-1/4 14-15
T-1911 3/4 11-13 T-3116 1-1/4 16-17
T-1914 3/4 14-15 T-3318 1-1/4 18-19
T-1916 3/4 16-17 T-3120 1-1/4 20-21
T-1918 3/4 18-19 T-3814 1-1/2 14-16
T-1920 3/4 20-21 T-3817 1-1/2 17-20
T-2212 7/8 12-13 T-4414 1-3/4 14-18
T-2214 7/8 14-15 T-5014 2 14-18
T-2216 7/8 16-17 T-5714 2-1/2 14-18
T-2218 7/8 18-19 T-7610 3 10-14
T-2220 7/8 20-21

Note: For other sizes of ‘Pine Jenny’ Spears. Please enquire.
