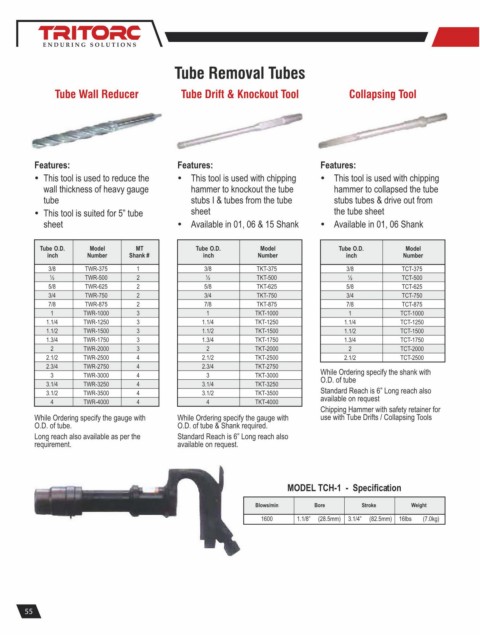

Tube Removal Tubes


               Tube Wall Reducer              Tube Drift & Knockout Tool                Collapsing Tool









         Features:                           Features:                           Features:
         Ÿ This tool is used to reduce the   Ÿ This tool is used with chipping   Ÿ This tool is used with chipping
            wall thickness of heavy gauge       hammer to knockout the tube         hammer to collapsed the tube
            tube                                stubs I & tubes from the tube       stubs tubes & drive out from
         Ÿ This tool is suited for 5” tube      sheet                               the tube sheet
            sheet                            Ÿ Available in 01, 06 & 15 Shank    Ÿ Available in 01, 06 Shank


           Tube O.D.   Model       MT             Tube O.D.       Model              Tube O.D.        Model
             inch      Number    Shank #           inch          Number                inch          Number
             3/8      TWR-375      1                3/8          TKT-375               3/8           TCT-375
             ½        TWR-500      2                ½            TKT-500               ½             TCT-500
             5/8      TWR-625      2                5/8          TKT-625               5/8           TCT-625
             3/4      TWR-750      2                3/4          TKT-750               3/4           TCT-750
             7/8      TWR-875      2                7/8          TKT-875               7/8           TCT-875
             1        TWR-1000     3                1           TKT-1000                1           TCT-1000
            1.1/4     TWR-1250     3               1.1/4        TKT-1250              1.1/4         TCT-1250
            1.1/2     TWR-1500     3               1.1/2        TKT-1500              1.1/2         TCT-1500
            1.3/4     TWR-1750     3               1.3/4        TKT-1750              1.3/4         TCT-1750
             2        TWR-2000     3                2           TKT-2000                2           TCT-2000
            2.1/2     TWR-2500     4               2.1/2        TKT-2500              2.1/2         TCT-2500
            2.3/4     TWR-2750     4               2.3/4        TKT-2750
                                                                                 While Ordering specify the shank with
             3        TWR-3000     4                3           TKT-3000
                                                                                 O.D. of tube
            3.1/4     TWR-3250     4               3.1/4        TKT-3250
                                                                                 Standard Reach is 6” Long reach also
            3.1/2     TWR-3500     4               3.1/2        TKT-3500
                                                                                 available on request
             4        TWR-4000     4                4           TKT-4000
                                                                                 Chipping Hammer with safety retainer for
         While Ordering specify the gauge with   While Ordering specify the gauge with   use with Tube Drifts / Collapsing Tools
         O.D. of tube.                       O.D. of tube & Shank required.
         Long reach also available as per the   Standard Reach is 6” Long reach also
         requirement.                        available on request.




                                                                        MODEL TCH-1  -  Specification

                                                                Blows/min      Bore        Stroke      Weight
                                                                  1600     1.1/8”  (28.5mm)  3.1/4”  (82.5mm)  16lbs  (7.0kg)
