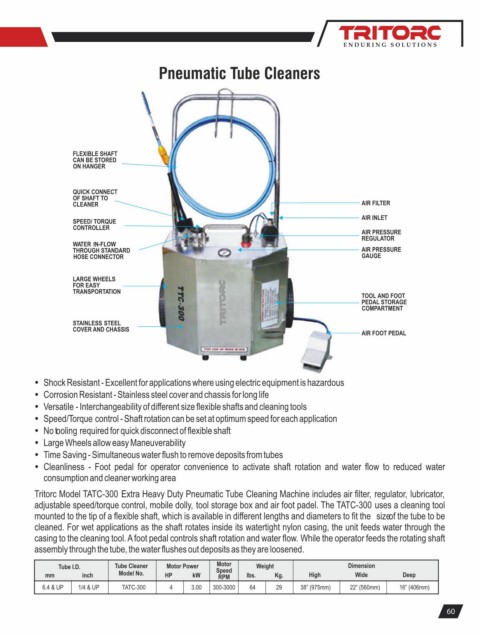

Pneumatic Tube Cleaners
FLEXIBLE SHAFT
CAN BE STORED
ON HANGER
QUICK CONNECT
OF SHAFT TO
CLEANER AIR FILTER
AIR INLET
SPEED/ TORQUE
CONTROLLER
AIR PRESSURE
REGULATOR
WATER IN-FLOW
THROUGH STANDARD AIR PRESSURE
HOSE CONNECTOR GAUGE
LARGE WHEELS
FOR EASY
TRANSPORTATION
TOOL AND FOOT
PEDAL STORAGE
COMPARTMENT
STAINLESS STEEL
COVER AND CHASSIS
AIR FOOT PEDAL
Ÿ Shock Resistant - Excellent for applications where using electric equipment is hazardous
Ÿ Corrosion Resistant - Stainless steel cover and chassis for long life
Ÿ Versatile - Interchangeability of different size flexible shafts and cleaning tools
Ÿ Speed/Torque control - Shaft rotation can be set at optimum speed for each application
Ÿ No tooling required for quick disconnect of flexible shaft
Ÿ Large Wheels allow easy Maneuverability
Ÿ Time Saving - Simultaneous water flush to remove deposits from tubes
Ÿ Cleanliness - Foot pedal for operator convenience to activate shaft rotation and water flow to reduced water
consumption and cleaner working area
Tritorc Model TATC-300 Extra Heavy Duty Pneumatic Tube Cleaning Machine includes air filter, regulator, lubricator,
adjustable speed/torque control, mobile dolly, tool storage box and air foot padel. The TATC-300 uses a cleaning tool
mounted to the tip of a flexible shaft, which is available in different lengths and diameters to fit the sizeof the tube to be
cleaned. For wet applications as the shaft rotates inside its watertight nylon casing, the unit feeds water through the
casing to the cleaning tool. A foot pedal controls shaft rotation and water flow. While the operator feeds the rotating shaft
assembly through the tube, the water flushes out deposits as they are loosened.
Motor
Tube I.D. Tube Cleaner Motor Power Speed Weight Dimension
mm inch Model No. HP kW RPM lbs. Kg. High Wide Deep
6.4 & UP 1/4 & UP TATC-300 4 3.00 300-3000 64 29 38” (975mm) 22” (560mm) 16” (406mm)
