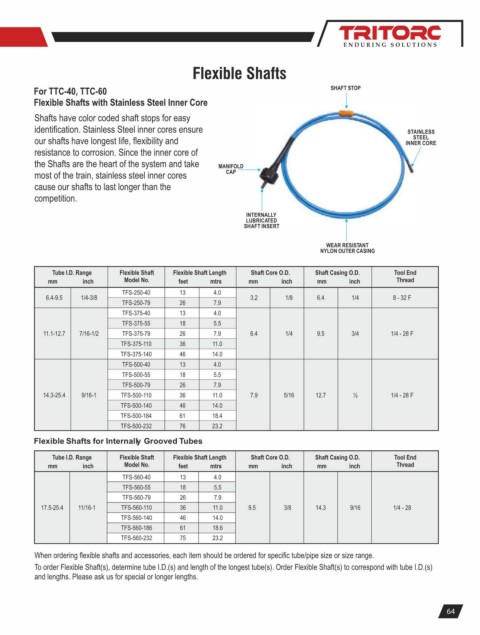

Flexible Shafts


         For TTC-40, TTC-60                                                        SHAFT STOP
         Flexible Shafts with Stainless Steel Inner Core

         Shafts have color coded shaft stops for easy
         identification. Stainless Steel inner cores ensure                                           STAINLESS
                                                                                                        STEEL
         our shafts have longest life, flexibility and                                                INNER CORE
         resistance to corrosion. Since the inner core of
         the Shafts are the heart of the system and take   MANIFOLD
                                                         CAP
         most of the train, stainless steel inner cores
         cause our shafts to last longer than the
         competition.

                                                              INTERNALLY
                                                              LUBRICATED
                                                              SHAFT INSERT

                                                                                  WEAR RESISTANT
                                                                                 NYLON OUTER CASING

              Tube I.D. Range  Flexible Shaft  Flexible Shaft Length  Shaft Core O.D.  Shaft Casing O.D.  Tool End
             mm      inch       Model No.    feet    mtrs      mm      inch     mm      inch       Thread
                               TFS-250-40     13      4.0
            6.4-9.5  1/4-3/8                                   3.2      1/8     6.4     1/4        8 - 32 F
                               TFS-250-79     26      7.9
                               TFS-375-40     13      4.0
                               TFS-375-55     18      5.5
            11.1-12.7  7/16-1/2  TFS-375-79   26      7.9      6.4      1/4     9.5     3/4       1/4 - 28 F

                               TFS-375-110    36      11.0
                               TFS-375-140    46      14.0
                               TFS-500-40     13      4.0
                               TFS-500-55     18      5.5
                               TFS-500-79     26      7.9
            14.3-25.4  9/16-1  TFS-500-110    36      11.0     7.9     5/16    12.7      ½        1/4 - 28 F

                               TFS-500-140    46      14.0
                               TFS-500-184    61      18.4
                               TFS-500-232    76      23.2
         Flexible Shafts for Internally Grooved Tubes

              Tube I.D. Range  Flexible Shaft  Flexible Shaft Length  Shaft Core O.D.  Shaft Casing O.D.  Tool End
             mm      inch       Model No.    feet    mtrs      mm      inch     mm      inch       Thread
                               TFS-560-40     13      4.0
                               TFS-560-55     18      5.5
                               TFS-560-79     26      7.9

           17.5-25.4  11/16-1  TFS-560-110    36      11.0     9.5     3/8     14.3     9/16       1/4 - 28
                               TFS-560-140    46      14.0
                               TFS-560-186    61      18.6
                               TFS-560-232    75      23.2

         When ordering flexible shafts and accessories, each item should be ordered for specific tube/pipe size or size range.
         To order Flexible Shaft(s), determine tube I.D.(s) and length of the longest tube(s). Order Flexible Shaft(s) to correspond with tube I.D.(s)
         and lengths. Please ask us for special or longer lengths.
