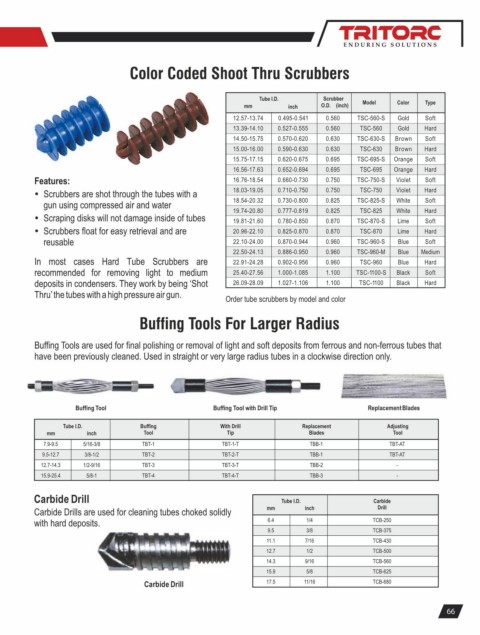

Page 69 - Tube Tool Catalogue

Color Coded Shoot Thru Scrubbers

Tube I.D. Scrubber Model Color Type
mm inch O.D. (inch)
12.57-13.74 0.495-0.541 0.560 TSC-560-S Gold Soft
13.39-14.10 0.527-0.555 0.560 TSC-560 Gold Hard
14.50-15.75 0.570-0.620 0.630 TSC-630-S Brown Soft
15.00-16.00 0.590-0.630 0.630 TSC-630 Brown Hard
15.75-17.15 0.620-0.675 0.695 TSC-695-S Orange Soft
16.56-17.63 0.652-0.694 0.695 TSC-695 Orange Hard
Features: 16.76-18.54 0.660-0.730 0.750 TSC-750-S Violet Soft
18.03-19.05 0.710-0.750 0.750 TSC-750 Violet Hard
Ÿ Scrubbers are shot through the tubes with a
gun using compressed air and water 18.54-20.32 0.730-0.800 0.825 TSC-825-S White Soft
19.74-20.80 0.777-0.819 0.825 TSC-825 White Hard
Ÿ Scraping disks will not damage inside of tubes 19.81-21.60 0.780-0.850 0.870 TSC-870-S Lime Soft
Ÿ Scrubbers float for easy retrieval and are 20.96-22.10 0.825-0.870 0.870 TSC-870 Lime Hard
reusable 22.10-24.00 0.870-0.944 0.960 TSC-960-S Blue Soft
22.50-24.13 0.886-0.950 0.960 TSC-960-M Blue Medium
In most cases Hard Tube Scrubbers are 22.91-24.28 0.902-0.956 0.960 TSC-960 Blue Hard
recommended for removing light to medium 25.40-27.56 1.000-1.085 1.100 TSC-1100-S Black Soft
deposits in condensers. They work by being ‘Shot 26.09-28.09 1.027-1.106 1.100 TSC-1100 Black Hard
Thru’ the tubes with a high pressure air gun.
Order tube scrubbers by model and color

Buffing Tools For Larger Radius

Buffing Tools are used for final polishing or removal of light and soft deposits from ferrous and non-ferrous tubes that
have been previously cleaned. Used in straight or very large radius tubes in a clockwise direction only.

Buffing Tool Buffing Tool with Drill Tip Replacement Blades

Tube I.D. Buffing With Drill Replacement Adjusting
mm inch Tool Tip Blades Tool
7.9-9.5 5/16-3/8 TBT-1 TBT-1-T TBB-1 TBT-AT
9.5-12.7 3/8-1/2 TBT-2 TBT-2-T TBB-1 TBT-AT
12.7-14.3 1/2-9/16 TBT-3 TBT-3-T TBB-2 -
15.9-25.4 5/8-1 TBT-4 TBT-4-T TBB-3 -

Carbide Drill Tube I.D. Carbide

mm inch Drill
Carbide Drills are used for cleaning tubes choked solidly
with hard deposits. 6.4 1/4 TCB-250
9.5 3/8 TCB-375
11.1 7/16 TCB-430
12.7 1/2 TCB-500
14.3 9/16 TCB-560
15.9 5/8 TCB-625
Carbide Drill 17.5 11/16 TCB-680
