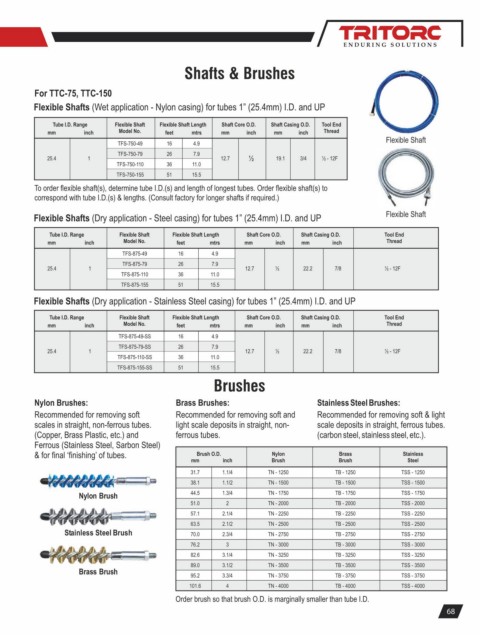

Page 71 - Tube Tool Catalogue

Shafts & Brushes

For TTC-75, TTC-150
Flexible Shafts (Wet application - Nylon casing) for tubes 1” (25.4mm) I.D. and UP

Tube I.D. Range Flexible Shaft Flexible Shaft Length Shaft Core O.D. Shaft Casing O.D. Tool End
mm inch Model No. feet mtrs mm inch mm inch Thread
Flexible Shaft
TFS-750-49 16 4.9
TFS-750-79 26 7.9
25.4 1 12.7 ½ 19.1 3/4 ½ - 12F
TFS-750-110 36 11.0
TFS-750-155 51 15.5
To order flexible shaft(s), determine tube I.D.(s) and length of longest tubes. Order flexible shaft(s) to
correspond with tube I.D.(s) & lengths. (Consult factory for longer shafts if required.)

Flexible Shaft
Flexible Shafts (Dry application - Steel casing) for tubes 1” (25.4mm) I.D. and UP
Tube I.D. Range Flexible Shaft Flexible Shaft Length Shaft Core O.D. Shaft Casing O.D. Tool End
mm inch Model No. feet mtrs mm inch mm inch Thread
TFS-875-49 16 4.9
TFS-875-79 26 7.9
25.4 1 12.7 ½ 22.2 7/8 ½ - 12F
TFS-875-110 36 11.0
TFS-875-155 51 15.5
Flexible Shafts (Dry application - Stainless Steel casing) for tubes 1” (25.4mm) I.D. and UP

Tube I.D. Range Flexible Shaft Flexible Shaft Length Shaft Core O.D. Shaft Casing O.D. Tool End
mm inch Model No. feet mtrs mm inch mm inch Thread
TFS-875-49-SS 16 4.9
TFS-875-79-SS 26 7.9
25.4 1 12.7 ½ 22.2 7/8 ½ - 12F
TFS-875-110-SS 36 11.0
TFS-875-155-SS 51 15.5
Brushes

Nylon Brushes: Brass Brushes: Stainless Steel Brushes:
Recommended for removing soft Recommended for removing soft and Recommended for removing soft & light
scales in straight, non-ferrous tubes. light scale deposits in straight, non- scale deposits in straight, ferrous tubes.
(Copper, Brass Plastic, etc.) and ferrous tubes. (carbon steel, stainless steel, etc.).
Ferrous (Stainless Steel, Sarbon Steel)
& for final ‘finishing’ of tubes. Brush O.D. Nylon Brass Stainless
mm inch Brush Brush Steel
31.7 1.1/4 TN - 1250 TB - 1250 TSS - 1250
38.1 1.1/2 TN - 1500 TB - 1500 TSS - 1500
44.5 1.3/4 TN - 1750 TB - 1750 TSS - 1750
Nylon Brush
51.0 2 TN - 2000 TB - 2000 TSS - 2000
57.1 2.1/4 TN - 2250 TB - 2250 TSS - 2250
63.5 2.1/2 TN - 2500 TB - 2500 TSS - 2500
Stainless Steel Brush 70.0 2.3/4 TN - 2750 TB - 2750 TSS - 2750
76.2 3 TN - 3000 TB - 3000 TSS - 3000
82.6 3.1/4 TN - 3250 TB - 3250 TSS - 3250
89.0 3.1/2 TN - 3500 TB - 3500 TSS - 3500
Brass Brush
95.2 3.3/4 TN - 3750 TB - 3750 TSS - 3750
101.6 4 TN - 4000 TB - 4000 TSS - 4000
Order brush so that brush O.D. is marginally smaller than tube I.D.
