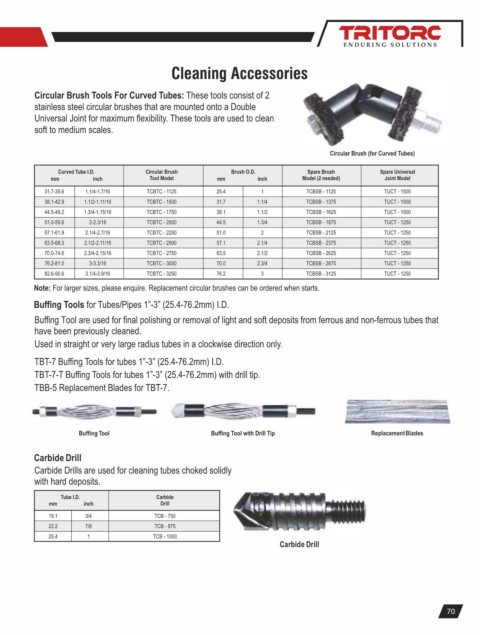

Cleaning Accessories


         Circular Brush Tools For Curved Tubes: These tools consist of 2
         stainless steel circular brushes that are mounted onto a Double
         Universal Joint for maximum flexibility. These tools are used to clean
         soft to medium scales.

                                                                                   Circular Brush (for Curved Tubes)

               Curved Tube I.D.      Circular Brush       Brush O.D.         Spare Brush       Spare Universal
              mm        inch          Tool Model       mm        inch       Model (2 needed)     Joint Model
            31.7-35.6  1.1/4-1.7/16  TCBTC - 1125      25.4       1          TCBSB - 1125       TUCT - 1500
            38.1-42.9  1.1/2-1.11/16  TCBTC - 1500     31.7      1.1/4       TCBSB - 1375       TUCT - 1500
            44.5-49.2  1.3/4-1.15/16  TCBTC - 1750     38.1      1.1/2       TCBSB - 1625       TUCT - 1500
            51.0-55.6  2-2.3/16      TCBTC - 2000      44.5      1.3/4       TCBSB - 1875       TUCT - 1250
            57.1-61.9  2.1/4-2.7/16  TCBTC - 2250      51.0       2          TCBSB - 2125       TUCT - 1250
            63.5-68.3  2.1/2-2.11/16  TCBTC - 2500     57.1      2.1/4       TCBSB - 2375       TUCT - 1250
            70.0-74.6  2.3/4-2.15/16  TCBTC - 2750     63.5      2.1/2       TCBSB - 2625       TUCT - 1250
            76.2-81.0  3-3.3/16      TCBTC - 3000      70.0      2.3/4       TCBSB - 2875       TUCT - 1250
            82.6-90.6  3.1/4-3.9/16  TCBTC - 3250      76.2       3          TCBSB - 3125       TUCT - 1250
         Note: For larger sizes, please enquire. Replacement circular brushes can be ordered when starts.

         Buffing Tools for Tubes/Pipes 1”-3” (25.4-76.2mm) I.D.
         Buffing Tool are used for final polishing or removal of light and soft deposits from ferrous and non-ferrous tubes that
         have been previously cleaned.
         Used in straight or very large radius tubes in a clockwise direction only.

         TBT-7 Buffing Tools for tubes 1”-3” (25.4-76.2mm) I.D.
         TBT-7-T Buffing Tools for tubes 1”-3” (25.4-76.2mm) with drill tip.
         TBB-5 Replacement Blades for TBT-7.





                    Buffing Tool                     Buffing Tool with Drill Tip             Replacement Blades

         Carbide Drill
         Carbide Drills are used for cleaning tubes choked solidly
         with hard deposits.

                Tube I.D.               Carbide
             mm       inch               Drill
             19.1     3/4              TCB - 750
             22.2     7/8              TCB - 875
             25.4      1               TCB - 1000
                                                                      Carbide Drill
