P. 77

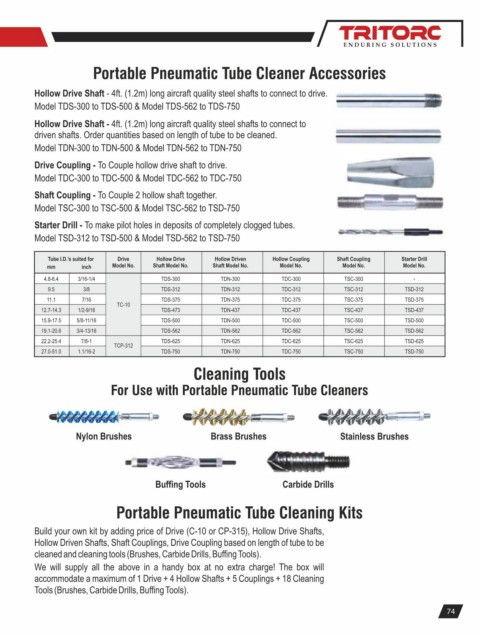

Portable Pneumatic Tube Cleaner Accessories


         Hollow Drive Shaft - 4ft. (1.2m) long aircraft quality steel shafts to connect to drive.
         Model TDS-300 to TDS-500 & Model TDS-562 to TDS-750

         Hollow Drive Shaft - 4ft. (1.2m) long aircraft quality steel shafts to connect to
         driven shafts. Order quantities based on length of tube to be cleaned.
         Model TDN-300 to TDN-500 & Model TDN-562 to TDN-750

         Drive Coupling - To Couple hollow drive shaft to drive.
         Model TDC-300 to TDC-500 & Model TDC-562 to TDC-750

         Shaft Coupling - To Couple 2 hollow shaft together.
         Model TSC-300 to TSC-500 & Model TSC-562 to TSD-750
         Starter Drill - To make pilot holes in deposits of completely clogged tubes.
         Model TSD-312 to TSD-500 & Model TSD-562 to TSD-750


             Tube I.D.’s suited for  Drive  Hollow Drive  Hollow Driven  Hollow Coupling  Shaft Coupling  Starter Drill
             mm      inch    Model No.  Shaft Model No.  Shaft Model No.  Model No.   Model No.      Model No.
            4.8-6.4  3/16-1/4            TDS-300        TDN-300        TDC-300        TSC-300           -
             9.5      3/8                TDS-312        TDN-312        TDC-312        TSC-312         TSD-312
             11.1    7/16                TDS-375        TDN-375        TDC-375        TSC-375         TSD-375
                              TC-10
           12.7-14.3  1/2-9/16           TDS-473        TDN-437        TDC-437        TSC-437         TSD-437
           15.9-17.5  5/8-11/16          TDS-500        TDN-500        TDC-500        TSC-500         TSD-500
           19.1-20.6  3/4-13/16          TDS-562        TDN-562        TDC-562        TSC-562         TSD-562
           22.2-25.4  7/8-1              TDS-625        TDN-625        TDC-625        TSC-625         TSD-625
                             TCP-312
           27.0-51.0  1.1/16-2           TDS-750        TDN-750        TDC-750        TSC-750         TSD-750
                                                 Cleaning Tools

                            For Use with Portable Pneumatic Tube Cleaners





                    Nylon Brushes                    Brass Brushes                   Stainless Brushes






                                        Buffing Tools                  Carbide Drills

                              Portable Pneumatic Tube Cleaning Kits


         Build your own kit by adding price of Drive (C-10 or CP-315), Hollow Drive Shafts,
         Hollow Driven Shafts, Shaft Couplings, Drive Coupling based on length of tube to be
         cleaned and cleaning tools (Brushes, Carbide Drills, Buffing Tools).
         We  will  supply  all  the  above  in  a  handy  box  at  no  extra  charge!  The  box  will
         accommodate a maximum of 1 Drive + 4 Hollow Shafts + 5 Couplings + 18 Cleaning
         Tools (Brushes, Carbide Drills, Buffing Tools).

                                                                                                                74
