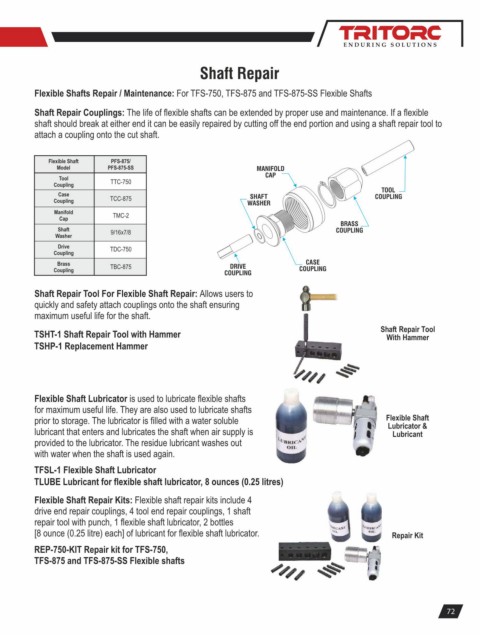

Shaft Repair


         Flexible Shafts Repair / Maintenance: For TFS-750, TFS-875 and TFS-875-SS Flexible Shafts

         Shaft Repair Couplings: The life of flexible shafts can be extended by proper use and maintenance. If a flexible
         shaft should break at either end it can be easily repaired by cutting off the end portion and using a shaft repair tool to
         attach a coupling onto the cut shaft.



             Flexible Shaft  PFS-875/

               Model        PFS-875-SS                           MANIFOLD
                                                                   CAP
                Tool
              Coupling      TTC-750
                                                                                                TOOL
               Case                                            SHAFT
              Coupling      TCC-875                                                           COUPLING
                                                              WASHER
              Manifold
                Cap          TMC-2
                                                                                      BRASS
               Shaft                                                                COUPLING
               Washer       9/16x7/8
               Drive
              Coupling      TDC-750
               Brass                                      DRIVE              CASE
              Coupling      TBC-875                      COUPLING          COUPLING
         Shaft Repair Tool For Flexible Shaft Repair: Allows users to
         quickly and safety attach couplings onto the shaft ensuring
         maximum useful life for the shaft.

                                                                                               Shaft Repair Tool
         TSHT-1 Shaft Repair Tool with Hammer                                                    With Hammer
         TSHP-1 Replacement Hammer






         Flexible Shaft Lubricator is used to lubricate flexible shafts
         for maximum useful life. They are also used to lubricate shafts
         prior to storage. The lubricator is filled with a water soluble                         Flexible Shaft
                                                                                                 Lubricator &
         lubricant that enters and lubricates the shaft when air supply is                        Lubricant
         provided to the lubricator. The residue lubricant washes out
         with water when the shaft is used again.
         TFSL-1 Flexible Shaft Lubricator
         TLUBE Lubricant for flexible shaft lubricator, 8 ounces (0.25 litres)

         Flexible Shaft Repair Kits: Flexible shaft repair kits include 4
         drive end repair couplings, 4 tool end repair couplings, 1 shaft
         repair tool with punch, 1 flexible shaft lubricator, 2 bottles
         [8 ounce (0.25 litre) each] of lubricant for flexible shaft lubricator.                  Repair Kit

         REP-750-KIT Repair kit for TFS-750,
         TFS-875 and TFS-875-SS Flexible shafts
