P. 76

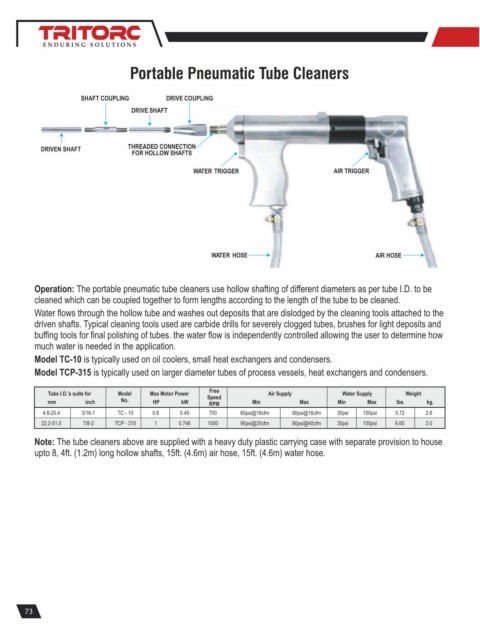

Portable Pneumatic Tube Cleaners



                     SHAFT COUPLING       DRIVE COUPLING
                                  DRIVE SHAFT



                                 THREADED CONNECTION
           DRIVEN SHAFT
                                  FOR HOLLOW SHAFTS
                                                 WATER TRIGGER                      AIR TRIGGER











                                                     WATER HOSE                               AIR HOSE



         Operation: The portable pneumatic tube cleaners use hollow shafting of different diameters as per tube I.D. to be
         cleaned which can be coupled together to form lengths according to the length of the tube to be cleaned.
         Water flows through the hollow tube and washes out deposits that are dislodged by the cleaning tools attached to the
         driven shafts. Typical cleaning tools used are carbide drills for severely clogged tubes, brushes for light deposits and
         buffing tools for final polishing of tubes. the water flow is independently controlled allowing the user to determine how
         much water is needed in the application.
         Model TC-10 is typically used on oil coolers, small heat exchangers and condensers.
         Model TCP-315 is typically used on larger diameter tubes of process vessels, heat exchangers and condensers.

                                                     Free
             Tube I.D.’s suite for  Model  Max Motor Power  Speed   Air Supply        Water Supply    Weight
             mm       inch     No.     HP     kW                Min        Max       Min    Max    lbs.    kg.
                                                     RPM
            4.8-25.4  3/16-1  TC - 10  0.6    0.45   700     60psi@16cfm  90psi@16cfm  30psi  100psi  5.72  2.6
           22.2-51.0  7/8-2  TCP - 315  1    0.746   1000    90psi@20cfm  90psi@40cfm  30psi  100psi  6.60  3.0

         Note: The tube cleaners above are supplied with a heavy duty plastic carrying case with separate provision to house
         upto 8, 4ft. (1.2m) long hollow shafts, 15ft. (4.6m) air hose, 15ft. (4.6m) water hose.
