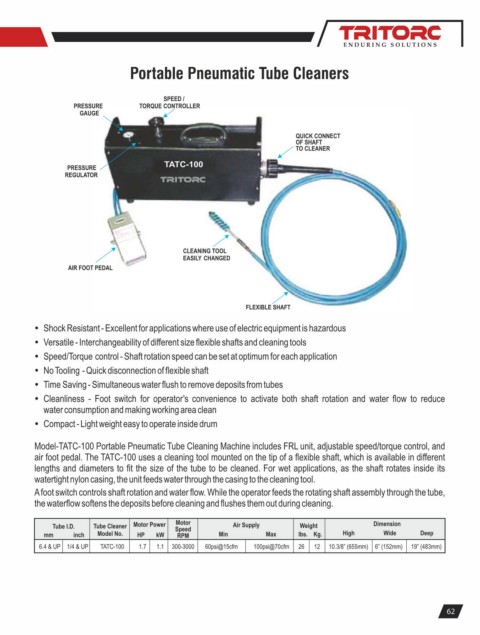

Portable Pneumatic Tube Cleaners



                                          SPEED /
                   PRESSURE         TORQUE CONTROLLER
                     GAUGE


                                                                          QUICK CONNECT
                                                                          OF SHAFT
                                                                          TO CLEANER
                                          TATC-100
                  PRESSURE
                 REGULATOR









                                              CLEANING TOOL
                                              EASILY CHANGED
                  AIR FOOT PEDAL




                                                              FLEXIBLE SHAFT

         Ÿ Shock Resistant - Excellent for applications where use of electric equipment is hazardous
         Ÿ Versatile - Interchangeability of different size flexible shafts and cleaning tools

         Ÿ Speed/Torque control - Shaft rotation speed can be set at optimum for each application
         Ÿ No Tooling - Quick disconnection of flexible shaft
         Ÿ Time Saving - Simultaneous water flush to remove deposits from tubes
         Ÿ Cleanliness  -  Foot  switch  for  operator's  convenience  to  activate  both  shaft  rotation  and  water  flow  to  reduce
            water consumption and making working area clean
         Ÿ Compact - Light weight easy to operate inside drum


         Model-TATC-100 Portable Pneumatic Tube Cleaning Machine includes FRL unit, adjustable speed/torque control, and
         air foot pedal. The TATC-100 uses a cleaning tool mounted on the tip of a flexible shaft, which is available in different
         lengths and diameters to fit the size of the tube to be cleaned. For wet applications, as the shaft rotates inside its
         watertight nylon casing, the unit feeds water through the casing to the cleaning tool.
         A foot switch controls shaft rotation and water flow. While the operator feeds the rotating shaft assembly through the tube,
         the waterflow softens the deposits before cleaning and flushes them out during cleaning.

                                             Motor
              Tube I.D.  Tube Cleaner  Motor Power  Speed  Air Supply      Weight             Dimension
            mm     inch  Model No.  HP  kW   RPM       Min         Max     lbs.  Kg.  High      Wide     Deep
           6.4 & UP 1/4 & UP  TATC-100  1.7  1.1  300-3000  60psi@15cfm  100psi@70cfm  26  12  10.3/8” (655mm)  6” (152mm)  19” (483mm)
