P. 62

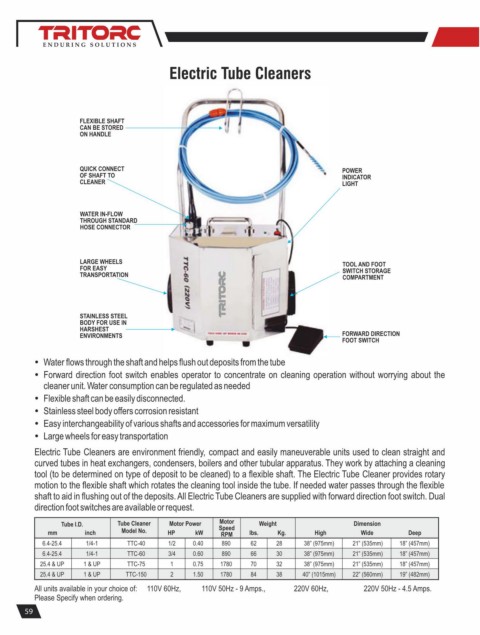

Electric Tube Cleaners






                     FLEXIBLE SHAFT
                     CAN BE STORED
                     ON HANDLE




                     QUICK CONNECT                                                    POWER
                     OF SHAFT TO                                                      INDICATOR
                     CLEANER                                                          LIGHT



                     WATER IN-FLOW
                     THROUGH STANDARD
                     HOSE CONNECTOR



                     LARGE WHEELS                                                     TOOL AND FOOT
                     FOR EASY                                                         SWITCH STORAGE
                     TRANSPORTATION                                                   COMPARTMENT





                     STAINLESS STEEL
                     BODY FOR USE IN
                     HARSHEST
                     ENVIRONMENTS                                                     FORWARD DIRECTION
                                                                                      FOOT SWITCH

         Ÿ Water flows through the shaft and helps flush out deposits from the tube
         Ÿ Forward direction foot switch enables operator to concentrate on cleaning operation without worrying about the
            cleaner unit. Water consumption can be regulated as needed
         Ÿ Flexible shaft can be easily disconnected.
         Ÿ Stainless steel body offers corrosion resistant
         Ÿ Easy interchangeability of various shafts and accessories for maximum versatility
         Ÿ Large wheels for easy transportation

         Electric Tube Cleaners are environment friendly, compact and easily maneuverable units used to clean straight and
         curved tubes in heat exchangers, condensers, boilers and other tubular apparatus. They work by attaching a cleaning
         tool (to be determined on type of deposit to be cleaned) to a flexible shaft. The Electric Tube Cleaner provides rotary
         motion to the flexible shaft which rotates the cleaning tool inside the tube. If needed water passes through the flexible
         shaft to aid in flushing out of the deposits. All Electric Tube Cleaners are supplied with forward direction foot switch. Dual
         direction foot switches are available or request.
                                                       Motor
                Tube I.D.     Tube Cleaner  Motor Power  Speed   Weight                  Dimension
             mm       inch     Model No.   HP    kW     RPM    lbs.   Kg.      High        Wide       Deep
           6.4-25.4   1/4-1      TTC-40    1/2   0.40   890    62     28    38” (975mm)  21” (535mm)  18” (457mm)
           6.4-25.4   1/4-1      TTC-60    3/4   0.60   890    66     30    38” (975mm)  21” (535mm)  18” (457mm)
           25.4 & UP  1 & UP     TTC-75    1     0.75   1780   70     32    38” (975mm)  21” (535mm)  18” (457mm)
           25.4 & UP  1 & UP    TTC-150    2     1.50   1780   84     38    40” (1015mm)  22” (560mm)  19” (482mm)
         All units available in your choice of:  110V 60Hz,   110V 50Hz - 9 Amps.,    220V 60Hz,   220V 50Hz - 4.5 Amps.
         Please Specify when ordering.
