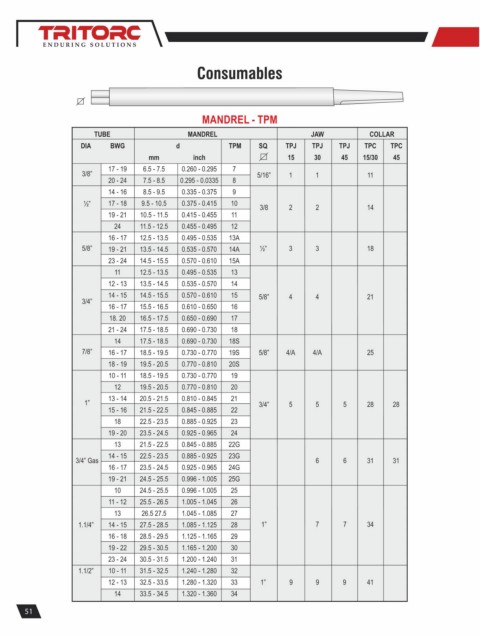

Consumables

MANDREL - TPM
TUBE MANDREL JAW COLLAR
DIA BWG d TPM SQ TPJ TPJ TPJ TPC TPC
mm inch 15 30 45 15/30 45
17 - 19 6.5 - 7.5 0.260 - 0.295 7
3/8” 5/16” 1 1 11
20 - 24 7.5 - 8.5 0.295 - 0.0335 8
14 - 16 8.5 - 9.5 0.335 - 0.375 9
½” 17 - 18 9.5 - 10.5 0.375 - 0.415 10
3/8 2 2 14
19 - 21 10.5 - 11.5 0.415 - 0.455 11
24 11.5 - 12.5 0.455 - 0.495 12
16 - 17 12.5 - 13.5 0.495 - 0.535 13A
5/8” 19 - 21 13.5 - 14.5 0.535 - 0.570 14A ½” 3 3 18

23 - 24 14.5 - 15.5 0.570 - 0.610 15A
11 12.5 - 13.5 0.495 - 0.535 13
12 - 13 13.5 - 14.5 0.535 - 0.570 14
14 - 15 14.5 - 15.5 0.570 - 0.610 15 5/8” 4 4 21
3/4”
16 - 17 15.5 - 16.5 0.610 - 0.650 16
18. 20 16.5 - 17.5 0.650 - 0.690 17
21 - 24 17.5 - 18.5 0.690 - 0.730 18
14 17.5 - 18.5 0.690 - 0.730 18S
7/8” 16 - 17 18.5 - 19.5 0.730 - 0.770 19S 5/8” 4/A 4/A 25
18 - 19 19.5 - 20.5 0.770 - 0.810 20S
10 - 11 18.5 - 19.5 0.730 - 0.770 19
12 19.5 - 20.5 0.770 - 0.810 20
13 - 14 20.5 - 21.5 0.810 - 0.845 21
1” 3/4” 5 5 5 28 28
15 - 16 21.5 - 22.5 0.845 - 0.885 22
18 22.5 - 23.5 0.885 - 0.925 23
19 - 20 23.5 - 24.5 0.925 - 0.965 24
13 21.5 - 22.5 0.845 - 0.885 22G
14 - 15 22.5 - 23.5 0.885 - 0.925 23G
3/4” Gas 6 6 31 31
16 - 17 23.5 - 24.5 0.925 - 0.965 24G
19 - 21 24.5 - 25.5 0.996 - 1.005 25G
10 24.5 - 25.5 0.996 - 1.005 25
11 - 12 25.5 - 26.5 1.005 - 1.045 26
13 26.5 27.5 1.045 - 1.085 27
1.1/4” 14 - 15 27.5 - 28.5 1.085 - 1.125 28 1” 7 7 34
16 - 18 28.5 - 29.5 1.125 - 1.165 29
19 - 22 29.5 - 30.5 1.165 - 1.200 30
23 - 24 30.5 - 31.5 1.200 - 1.240 31
1.1/2” 10 - 11 31.5 - 32.5 1.240 - 1.280 32
12 - 13 32.5 - 33.5 1.280 - 1.320 33 1” 9 9 9 41
14 33.5 - 34.5 1.320 - 1.360 34
