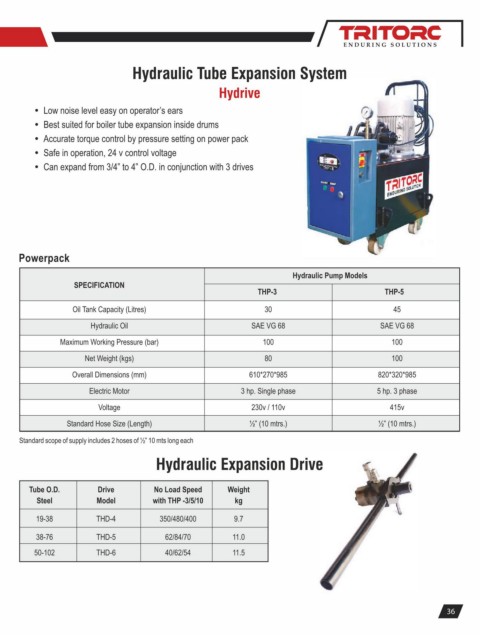

Hydraulic Tube Expansion System


                                                       Hydrive
         Ÿ Low noise level easy on operator’s ears

         Ÿ Best suited for boiler tube expansion inside drums
         Ÿ Accurate torque control by pressure setting on power pack
         Ÿ Safe in operation, 24 v control voltage
         Ÿ Can expand from 3/4” to 4” O.D. in conjunction with 3 drives












      Powerpack

                                                                          Hydraulic Pump Models
                   SPECIFICATION
                                                                 THP-3                           THP-5

                   Oil Tank Capacity (Litres)                      30                              45
                       Hydraulic Oil                           SAE VG 68                       SAE VG 68

                Maximum Working Pressure (bar)                    100                             100
                      Net Weight (kgs)                             80                             100

                   Overall Dimensions (mm)                     610*270*985                     820*320*985
                       Electric Motor                        3 hp. Single phase                5 hp. 3 phase

                         Voltage                               230v / 110v                        415v
                  Standard Hose Size (Length)                  ½” (10 mtrs.)                   ½” (10 mtrs.)

      Standard scope of supply includes 2 hoses of ½” 10 mts long each

                                        Hydraulic Expansion Drive



        Tube O.D.        Drive         No Load Speed     Weight
          Steel          Model         with THP -3/5/10    kg

          19-38          THD-4           350/480/400       9.7

          38-76          THD-5            62/84/70         11.0
         50-102          THD-6            40/62/54         11.5
