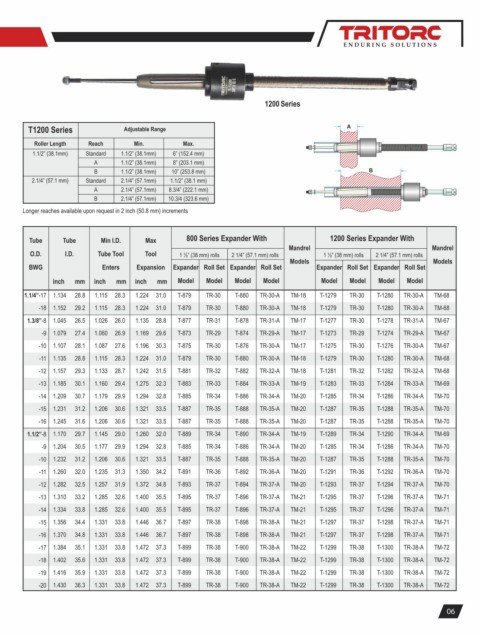

Page 9 - Tube Tool Catalogue

1200 Series

T1200 Series Adjustable Range
Roller Length Reach Min. Max.
1.1/2” (38.1mm) Standard 1.1/2” (38.1mm) 6” (152.4 mm)
A 1.1/2” (38.1mm) 8” (203.1 mm)
B 1.1/2” (38.1mm) 10” (253.8 mm)
2.1/4” (57.1 mm) Standard 2.1/4” (57.1mm) 1.1/2” (38.1 mm)
A 2.1/4” (57.1mm) 8.3/4” (222.1 mm)
B 2.1/4” (57.1mm) 10.3/4 (323.6 mm)
Longer reaches available upon request in 2 inch (50.8 mm) increments

Tube Tube Min I.D. Max 800 Series Expander With 1200 Series Expander With
Mandrel Mandrel
O.D. I.D. Tube Tool Tool 1 ½” (38 mm) rolls 2 1/4” (57.1 mm) rolls 1 ½” (38 mm) rolls 2 1/4” (57.1 mm) rolls
Models Models
BWG Enters Expansion Expander Roll Set Expander Roll Set Expander Roll Set Expander Roll Set
inch mm inch mm inch mm Model Model Model Model Model Model Model Model
1.1/4”-17 1.134 28.8 1.115 28.3 1.224 31.0 T-879 TR-30 T-880 TR-30-A TM-18 T-1279 TR-30 T-1280 TR-30-A TM-68
-18 1.152 29.2 1.115 28.3 1.224 31.0 T-879 TR-30 T-880 TR-30-A TM-18 T-1279 TR-30 T-1280 TR-30-A TM-68
1.3/8”-8 1.045 26.5 1.026 26.0 1.135 28.8 T-877 TR-31 T-878 TR-31-A TM-17 T-1277 TR-30 T-1278 TR-31-A TM-67
-9 1.079 27.4 1.060 26.9 1.169 29.6 T-873 TR-29 T-874 TR-29-A TM-17 T-1273 TR-29 T-1274 TR-29-A TM-67
-10 1.107 28.1 1.087 27.6 1.196 30.3 T-875 TR-30 T-876 TR-30-A TM-17 T-1275 TR-30 T-1276 TR-30-A TM-67
-11 1.135 28.8 1.115 28.3 1.224 31.0 T-879 TR-30 T-880 TR-30-A TM-18 T-1279 TR-30 T-1280 TR-30-A TM-68
-12 1.157 29.3 1.133 28.7 1.242 31.5 T-881 TR-32 T-882 TR-32-A TM-18 T-1281 TR-32 T-1282 TR-32-A TM-68
-13 1.185 30.1 1.160 29.4 1.275 32.3 T-883 TR-33 T-884 TR-33-A TM-19 T-1283 TR-33 T-1284 TR-33-A TM-69
-14 1.209 30.7 1.179 29.9 1.294 32.8 T-885 TR-34 T-886 TR-34-A TM-20 T-1285 TR-34 T-1286 TR-34-A TM-70
-15 1.231 31.2 1.206 30.6 1.321 33.5 T-887 TR-35 T-888 TR-35-A TM-20 T-1287 TR-35 T-1288 TR-35-A TM-70
-16 1.245 31.6 1.206 30.6 1.321 33.5 T-887 TR-35 T-888 TR-35-A TM-20 T-1287 TR-35 T-1288 TR-35-A TM-70
1.1/2”-8 1.170 29.7 1.145 29.0 1.260 32.0 T-889 TR-34 T-890 TR-34-A TM-19 T-1289 TR-34 T-1290 TR-34-A TM-69
-9 1.204 30.5 1.177 29.9 1.294 32.8 T-885 TR-34 T-886 TR-34-A TM-20 T-1285 TR-34 T-1286 TR-34-A TM-70
-10 1.232 31.2 1.206 30.6 1.321 33.5 T-887 TR-35 T-888 TR-35-A TM-20 T-1287 TR-35 T-1288 TR-35-A TM-70
-11 1.260 32.0 1.235 31.3 1.350 34.2 T-891 TR-36 T-892 TR-36-A TM-20 T-1291 TR-36 T-1292 TR-36-A TM-70
-12 1.282 32.5 1.257 31.9 1.372 34.8 T-893 TR-37 T-894 TR-37-A TM-20 T-1293 TR-37 T-1294 TR-37-A TM-70
-13 1.310 33.2 1.285 32.6 1.400 35.5 T-895 TR-37 T-896 TR-37-A TM-21 T-1295 TR-37 T-1296 TR-37-A TM-71
-14 1.334 33.8 1.285 32.6 1.400 35.5 T-895 TR-37 T-896 TR-37-A TM-21 T-1295 TR-37 T-1296 TR-37-A TM-71
-15 1.356 34.4 1.331 33.8 1.446 36.7 T-897 TR-38 T-898 TR-38-A TM-21 T-1297 TR-37 T-1298 TR-37-A TM-71
-16 1.370 34.8 1.331 33.8 1.446 36.7 T-897 TR-38 T-898 TR-38-A TM-21 T-1297 TR-37 T-1298 TR-37-A TM-71
-17 1.384 35.1 1.331 33.8 1.472 37.3 T-899 TR-38 T-900 TR-38-A TM-22 T-1299 TR-38 T-1300 TR-38-A TM-72
-18 1.402 35.6 1.331 33.8 1.472 37.3 T-899 TR-38 T-900 TR-38-A TM-22 T-1299 TR-38 T-1300 TR-38-A TM-72
-19 1.416 35.9 1.331 33.8 1.472 37.3 T-899 TR-38 T-900 TR-38-A TM-22 T-1299 TR-38 T-1300 TR-38-A TM-72
-20 1.430 36.3 1.331 33.8 1.472 37.3 T-899 TR-38 T-900 TR-38-A TM-22 T-1299 TR-38 T-1300 TR-38-A TM-72

06
