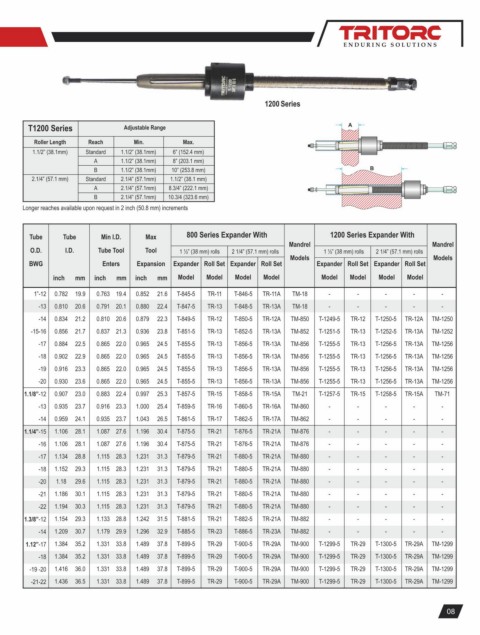

Page 11 - Tube Tool Catalogue

1200 Series

T1200 Series Adjustable Range

Roller Length Reach Min. Max.
1.1/2” (38.1mm) Standard 1.1/2” (38.1mm) 6” (152.4 mm)
A 1.1/2” (38.1mm) 8” (203.1 mm)
B 1.1/2” (38.1mm) 10” (253.8 mm)
2.1/4” (57.1 mm) Standard 2.1/4” (57.1mm) 1.1/2” (38.1 mm)
A 2.1/4” (57.1mm) 8.3/4” (222.1 mm)
B 2.1/4” (57.1mm) 10.3/4 (323.6 mm)
Longer reaches available upon request in 2 inch (50.8 mm) increments

Tube Tube Min I.D. Max 800 Series Expander With 1200 Series Expander With
Mandrel Mandrel
O.D. I.D. Tube Tool Tool 1 ½” (38 mm) rolls 2 1/4” (57.1 mm) rolls 1 ½” (38 mm) rolls 2 1/4” (57.1 mm) rolls
Models Models
BWG Enters Expansion Expander Roll Set Expander Roll Set Expander Roll Set Expander Roll Set
inch mm inch mm inch mm Model Model Model Model Model Model Model Model
1”-12 0.782 19.9 0.763 19.4 0.852 21.6 T-845-5 TR-11 T-846-5 TR-11A TM-18 - - - - -
-13 0.810 20.6 0.791 20.1 0.880 22.4 T-847-5 TR-13 T-848-5 TR-13A TM-18 - - - - -
-14 0.834 21.2 0.810 20.6 0.879 22.3 T-849-5 TR-12 T-850-5 TR-12A TM-850 T-1249-5 TR-12 T-1250-5 TR-12A TM-1250
-15-16 0.856 21.7 0.837 21.3 0.936 23.8 T-851-5 TR-13 T-852-5 TR-13A TM-852 T-1251-5 TR-13 T-1252-5 TR-13A TM-1252
-17 0.884 22.5 0.865 22.0 0.965 24.5 T-855-5 TR-13 T-856-5 TR-13A TM-856 T-1255-5 TR-13 T-1256-5 TR-13A TM-1256
-18 0.902 22.9 0.865 22.0 0.965 24.5 T-855-5 TR-13 T-856-5 TR-13A TM-856 T-1255-5 TR-13 T-1256-5 TR-13A TM-1256
-19 0.916 23.3 0.865 22.0 0.965 24.5 T-855-5 TR-13 T-856-5 TR-13A TM-856 T-1255-5 TR-13 T-1256-5 TR-13A TM-1256
-20 0.930 23.6 0.865 22.0 0.965 24.5 T-855-5 TR-13 T-856-5 TR-13A TM-856 T-1255-5 TR-13 T-1256-5 TR-13A TM-1256
1.1/8”-12 0.907 23.0 0.883 22.4 0.997 25.3 T-857-5 TR-15 T-858-5 TR-15A TM-21 T-1257-5 TR-15 T-1258-5 TR-15A TM-71
-13 0.935 23.7 0.916 23.3 1.000 25.4 T-859-5 TR-16 T-860-5 TR-16A TM-860 - - - - -
-14 0.959 24.1 0.935 23.7 1.043 26.5 T-861-5 TR-17 T-862-5 TR-17A TM-862 - - - - -
1.1/4”-15 1.106 28.1 1.087 27.6 1.196 30.4 T-875-5 TR-21 T-876-5 TR-21A TM-876 - - - - -
-16 1.106 28.1 1.087 27.6 1.196 30.4 T-875-5 TR-21 T-876-5 TR-21A TM-876 - - - - -
-17 1.134 28.8 1.115 28.3 1.231 31.3 T-879-5 TR-21 T-880-5 TR-21A TM-880 - - - - -
-18 1.152 29.3 1.115 28.3 1.231 31.3 T-879-5 TR-21 T-880-5 TR-21A TM-880 - - - - -
-20 1.18 29.6 1.115 28.3 1.231 31.3 T-879-5 TR-21 T-880-5 TR-21A TM-880 - - - - -
-21 1.186 30.1 1.115 28.3 1.231 31.3 T-879-5 TR-21 T-880-5 TR-21A TM-880 - - - - -
-22 1.194 30.3 1.115 28.3 1.231 31.3 T-879-5 TR-21 T-880-5 TR-21A TM-880 - - - - -
1.3/8”-12 1.154 29.3 1.133 28.8 1.242 31.5 T-881-5 TR-21 T-882-5 TR-21A TM-882 - - - - -
-14 1.209 30.7 1.179 29.9 1.296 32.9 T-885-5 TR-23 T-886-5 TR-23A TM-882 - - - - -
1.12”-17 1.384 35.2 1.331 33.8 1.489 37.8 T-899-5 TR-29 T-900-5 TR-29A TM-900 T-1299-5 TR-29 T-1300-5 TR-29A TM-1299
-18 1.384 35.2 1.331 33.8 1.489 37.8 T-899-5 TR-29 T-900-5 TR-29A TM-900 T-1299-5 TR-29 T-1300-5 TR-29A TM-1299
-19 -20 1.416 36.0 1.331 33.8 1.489 37.8 T-899-5 TR-29 T-900-5 TR-29A TM-900 T-1299-5 TR-29 T-1300-5 TR-29A TM-1299
-21-22 1.436 36.5 1.331 33.8 1.489 37.8 T-899-5 TR-29 T-900-5 TR-29A TM-900 T-1299-5 TR-29 T-1300-5 TR-29A TM-1299
