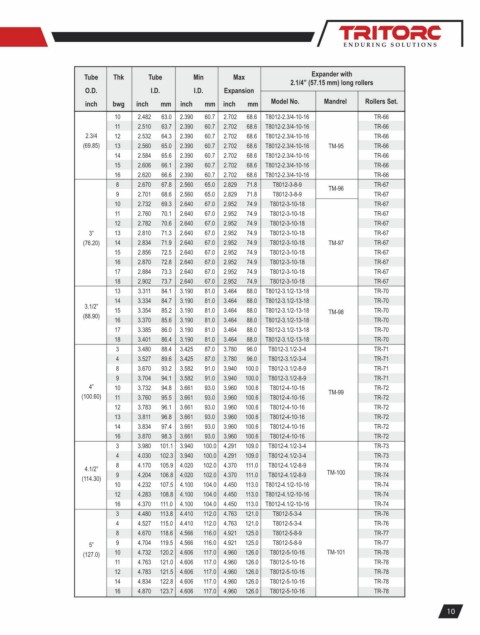

Page 13 - Tube Tool Catalogue

Expander with
Tube Thk Tube Min Max
2.1/4” (57.15 mm) long rollers
O.D. I.D. I.D. Expansion
inch bwg inch mm inch mm inch mm Model No. Mandrel Rollers Set.
10 2.482 63.0 2.390 60.7 2.702 68.6 T8012-2.3/4-10-16 TR-66
11 2.510 63.7 2.390 60.7 2.702 68.6 T8012-2.3/4-10-16 TR-66
2.3/4 12 2.532 64.3 2.390 60.7 2.702 68.6 T8012-2.3/4-10-16 TR-66
(69.85) 13 2.560 65.0 2.390 60.7 2.702 68.6 T8012-2.3/4-10-16 TM-95 TR-66
14 2.584 65.6 2.390 60.7 2.702 68.6 T8012-2.3/4-10-16 TR-66
15 2.606 66.1 2.390 60.7 2.702 68.6 T8012-2.3/4-10-16 TR-66
16 2.620 66.6 2.390 60.7 2.702 68.6 T8012-2.3/4-10-16 TR-66
8 2.670 67.8 2.560 65.0 2.829 71.8 T8012-3-8-9 TR-67
TM-96
9 2.701 68.6 2.560 65.0 2.829 71.8 T8012-3-8-9 TR-67
10 2.732 69.3 2.640 67.0 2.952 74.9 T8012-3-10-18 TR-67
11 2.760 70.1 2.640 67.0 2.952 74.9 T8012-3-10-18 TR-67
12 2.782 70.6 2.640 67.0 2.952 74.9 T8012-3-10-18 TR-67
3” 13 2.810 71.3 2.640 67.0 2.952 74.9 T8012-3-10-18 TR-67
(76.20) 14 2.834 71.9 2.640 67.0 2.952 74.9 T8012-3-10-18 TM-97 TR-67
15 2.856 72.5 2.640 67.0 2.952 74.9 T8012-3-10-18 TR-67
16 2.870 72.8 2.640 67.0 2.952 74.9 T8012-3-10-18 TR-67
17 2.884 73.3 2.640 67.0 2.952 74.9 T8012-3-10-18 TR-67
18 2.902 73.7 2.640 67.0 2.952 74.9 T8012-3-10-18 TR-67
13 3.311 84.1 3.190 81.0 3.464 88.0 T8012-3.1/2-13-18 TR-70
14 3.334 84.7 3.190 81.0 3.464 88.0 T8012-3.1/2-13-18 TR-70
3.1/2”
15 3.354 85.2 3.190 81.0 3.464 88.0 T8012-3.1/2-13-18 TM-98 TR-70
(88.90)
16 3.370 85.6 3.190 81.0 3.464 88.0 T8012-3.1/2-13-18 TR-70
17 3.385 86.0 3.190 81.0 3.464 88.0 T8012-3.1/2-13-18 TR-70
18 3.401 86.4 3.190 81.0 3.464 88.0 T8012-3.1/2-13-18 TR-70
3 3.480 88.4 3.425 87.0 3.780 96.0 T8012-3.1/2-3-4 TR-71
4 3.527 89.6 3.425 87.0 3.780 96.0 T8012-3.1/2-3-4 TR-71
8 3.670 93.2 3.582 91.0 3.940 100.0 T8012-3.1/2-8-9 TR-71
9 3.704 94.1 3.582 91.0 3.940 100.0 T8012-3.1/2-8-9 TR-71
4” 10 3.732 94.8 3.661 93.0 3.960 100.6 T8012-4-10-16 TR-72
TM-99
(100.60) 11 3.760 95.5 3.661 93.0 3.960 100.6 T8012-4-10-16 TR-72
12 3.783 96.1 3.661 93.0 3.960 100.6 T8012-4-10-16 TR-72
13 3.811 96.8 3.661 93.0 3.960 100.6 T8012-4-10-16 TR-72
14 3.834 97.4 3.661 93.0 3.960 100.6 T8012-4-10-16 TR-72
16 3.870 98.3 3.661 93.0 3.960 100.6 T8012-4-10-16 TR-72
3 3.980 101.1 3.940 100.0 4.291 109.0 T8012-4.1/2-3-4 TR-73
4 4.030 102.3 3.940 100.0 4.291 109.0 T8012-4.1/2-3-4 TR-73
8 4.170 105.9 4.020 102.0 4.370 111.0 T8012-4.1/2-8-9 TR-74
4.1/2”
9 4.204 106.8 4.020 102.0 4.370 111.0 T8012-4.1/2-8-9 TM-100 TR-74
(114.30)
10 4.232 107.5 4.100 104.0 4.450 113.0 T8012-4.1/2-10-16 TR-74
12 4.283 108.8 4.100 104.0 4.450 113.0 T8012-4.1/2-10-16 TR-74
16 4.370 111.0 4.100 104.0 4.450 113.0 T8012-4.1/2-10-16 TR-74
3 4.480 113.8 4.410 112.0 4.763 121.0 T8012-5-3-4 TR-76
4 4.527 115.0 4.410 112.0 4.763 121.0 T8012-5-3-4 TR-76
8 4.670 118.6 4.566 116.0 4.921 125.0 T8012-5-8-9 TR-77
5” 9 4.704 119.5 4.566 116.0 4.921 125.0 T8012-5-8-9 TR-77
(127.0) 10 4.732 120.2 4.606 117.0 4.960 126.0 T8012-5-10-16 TM-101 TR-78
11 4.763 121.0 4.606 117.0 4.960 126.0 T8012-5-10-16 TR-78
12 4.783 121.5 4.606 117.0 4.960 126.0 T8012-5-10-16 TR-78
14 4.834 122.8 4.606 117.0 4.960 126.0 T8012-5-10-16 TR-78
16 4.870 123.7 4.606 117.0 4.960 126.0 T8012-5-10-16 TR-78

10
