Over Roll

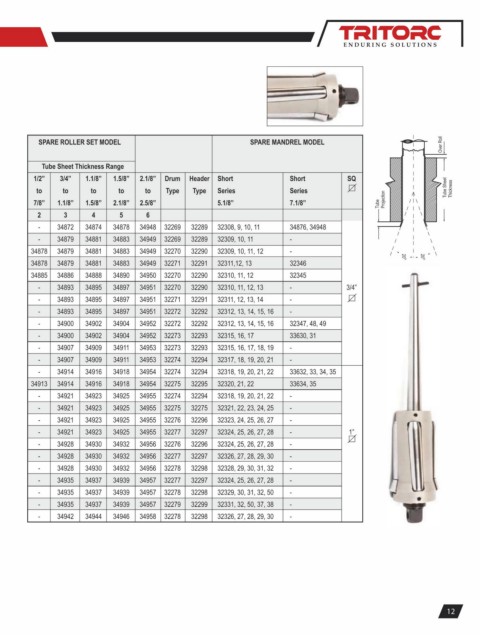

SPARE ROLLER SET MODEL SPARE MANDREL MODEL

Tube Sheet Thickness Range
1/2” 3/4” 1.1/8” 1.5/8” 2.1/8” Drum Header Short Short SQ
to to to to to Type Type Series Series Tube Sheet Thickness
7/8” 1.1/8” 1.5/8” 2.1/8” 2.5/8” 5.1/8” 7.1/8” Tube Projection
2 3 4 5 6
- 34872 34874 34878 34948 32269 32289 32308, 9, 10, 11 34876, 34948
- 34879 34881 34883 34949 32269 32289 32309, 10, 11 -
34878 34879 34881 34883 34949 32270 32290 32309, 10, 11, 12 - 20 o 20 o
34878 34879 34881 34883 34949 32271 32291 32311,12, 13 32346
34885 34886 34888 34890 34950 32270 32290 32310, 11, 12 32345
- 34893 34895 34897 34951 32270 32290 32310, 11, 12, 13 - 3/4”
- 34893 34895 34897 34951 32271 32291 32311, 12, 13, 14 -
- 34893 34895 34897 34951 32272 32292 32312, 13, 14, 15, 16 -
- 34900 34902 34904 34952 32272 32292 32312, 13, 14, 15, 16 32347, 48, 49
- 34900 34902 34904 34952 32273 32293 32315, 16, 17 33630, 31
- 34907 34909 34911 34953 32273 32293 32315, 16, 17, 18, 19 -
- 34907 34909 34911 34953 32274 32294 32317, 18, 19, 20, 21 -
- 34914 34916 34918 34954 32274 32294 32318, 19, 20, 21, 22 33632, 33, 34, 35
34913 34914 34916 34918 34954 32275 32295 32320, 21, 22 33634, 35
- 34921 34923 34925 34955 32274 32294 32318, 19, 20, 21, 22 -
- 34921 34923 34925 34955 32275 32275 32321, 22, 23, 24, 25 -
- 34921 34923 34925 34955 32276 32296 32323, 24, 25, 26, 27 -
- 34921 34923 34925 34955 32277 32297 32324, 25, 26, 27, 28 - 1”
- 34928 34930 34932 34956 32276 32296 32324, 25, 26, 27, 28 -
- 34928 34930 34932 34956 32277 32297 32326, 27, 28, 29, 30 -
- 34928 34930 34932 34956 32278 32298 32328, 29, 30, 31, 32 -
- 34935 34937 34939 34957 32277 32297 32324, 25, 26, 27, 28 -
- 34935 34937 34939 34957 32278 32298 32329, 30, 31, 32, 50 -
- 34935 34937 34939 34957 32279 32299 32331, 32, 50, 37, 38 -
- 34942 34944 34946 34958 32278 32298 32326, 27, 28, 29, 30 -
