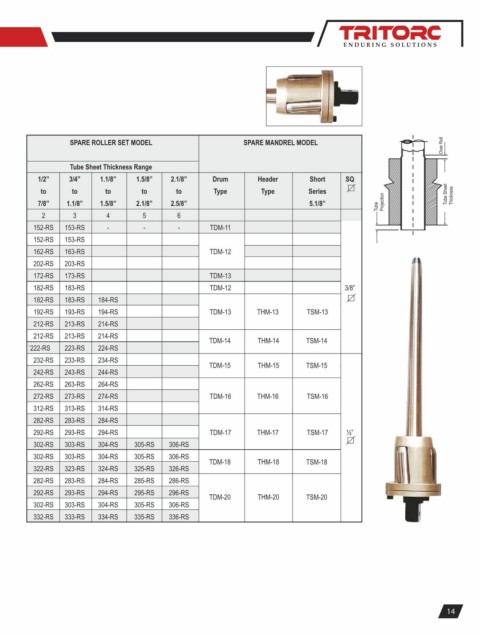

Page 17 - Tube Tool Catalogue

Over Roll
SPARE ROLLER SET MODEL SPARE MANDREL MODEL

Tube Sheet Thickness Range
1/2” 3/4” 1.1/8” 1.5/8” 2.1/8” Drum Header Short SQ
to to to to to Type Type Series Tube Sheet Thickness
7/8” 1.1/8” 1.5/8” 2.1/8” 2.5/8” 5.1/8” Projection
Tube
2 3 4 5 6
152-RS 153-RS - - - TDM-11
152-RS 153-RS
162-RS 163-RS TDM-12
202-RS 203-RS
172-RS 173-RS TDM-13
182-RS 183-RS TDM-12 3/8”
182-RS 183-RS 184-RS
192-RS 193-RS 194-RS TDM-13 THM-13 TSM-13
212-RS 213-RS 214-RS
212-RS 213-RS 214-RS
TDM-14 THM-14 TSM-14
`222-RS 223-RS 224-RS
232-RS 233-RS 234-RS
TDM-15 THM-15 TSM-15
242-RS 243-RS 244-RS
262-RS 263-RS 264-RS
272-RS 273-RS 274-RS TDM-16 THM-16 TSM-16
312-RS 313-RS 314-RS
282-RS 283-RS 284-RS
292-RS 293-RS 294-RS TDM-17 THM-17 TSM-17 ½”
302-RS 303-RS 304-RS 305-RS 306-RS
302-RS 303-RS 304-RS 305-RS 306-RS
TDM-18 THM-18 TSM-18
322-RS 323-RS 324-RS 325-RS 326-RS
282-RS 283-RS 284-RS 285-RS 286-RS
292-RS 293-RS 294-RS 295-RS 296-RS
TDM-20 THM-20 TSM-20
302-RS 303-RS 304-RS 305-RS 306-RS
332-RS 333-RS 334-RS 335-RS 336-RS
