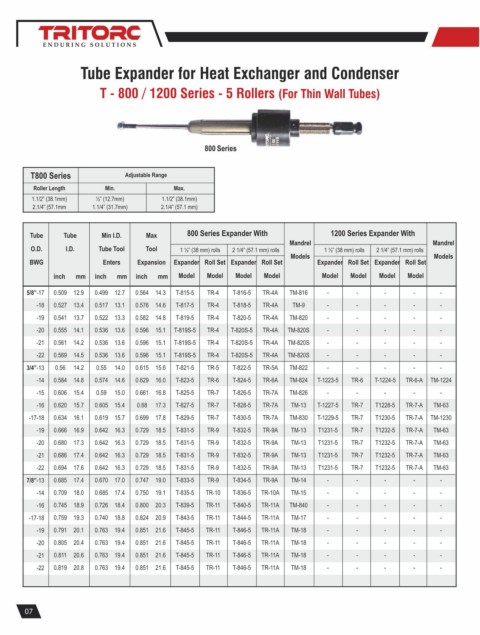

Tube Expander for Heat Exchanger and Condenser
T - 800 / 1200 Series - 5 Rollers (For Thin Wall Tubes)
800 Series
T800 Series Adjustable Range
Roller Length Min. Max.
1.1/2” (38.1mm) ½” (12.7mm) 1.1/2” (38.1mm)
2.1/4” (57.1mm 1.1/4” (31.7mm) 2.1/4” (57.1 mm)
Tube Tube Min I.D. Max 800 Series Expander With 1200 Series Expander With
Mandrel Mandrel
O.D. I.D. Tube Tool Tool 1 ½” (38 mm) rolls 2 1/4” (57.1 mm) rolls 1 ½” (38 mm) rolls 2 1/4” (57.1 mm) rolls
Models Models
BWG Enters Expansion Expander Roll Set Expander Roll Set Expander Roll Set Expander Roll Set
inch mm inch mm inch mm Model Model Model Model Model Model Model Model
5/8”-17 0.509 12.9 0.499 12.7 0.564 14.3 T-815-5 TR-4 T-816-5 TR-4A TM-816 - - - - -
-18 0.527 13.4 0.517 13.1 0.576 14.6 T-817-5 TR-4 T-818-5 TR-4A TM-9 - - - - -
-19 0.541 13.7 0.522 13.3 0.582 14.8 T-819-5 TR-4 T-820-5 TR-4A TM-820 - - - - -
-20 0.555 14.1 0.536 13.6 0.596 15.1 T-819S-5 TR-4 T-820S-5 TR-4A TM-820S - - - - -
-21 0.561 14.2 0.536 13.6 0.596 15.1 T-819S-5 TR-4 T-820S-5 TR-4A TM-820S - - - - -
-22 0.569 14.5 0.536 13.6 0.596 15.1 T-819S-5 TR-4 T-820S-5 TR-4A TM-820S - - - - -
3/4”-13 0.56 14.2 0.55 14.0 0.615 15.6 T-821-5 TR-5 T-822-5 TR-5A TM-822 - - - - -
-14 0.584 14.8 0.574 14.6 0.629 16.0 T-823-5 TR-6 T-824-5 TR-6A TM-824 T-1223-5 TR-6 T-1224-5 TR-6-A TM-1224
-15 0.606 15.4 0.59 15.0 0.661 16.8 T-825-5 TR-7 T-826-5 TR-7A TM-826 - - - - -
-16 0.620 15.7 0.605 15.4 0.68 17.3 T-827-5 TR-7 T-828-5 TR-7A TM-13 T-1227-5 TR-7 T1228-5 TR-7-A TM-63
-17-18 0.634 16.1 0.619 15.7 0.699 17.8 T-829-5 TR-7 T-830-5 TR-7A TM-830 T-1229-5 TR-7 T1230-5 TR-7-A TM-1230
-19 0.666 16.9 0.642 16.3 0.729 18.5 T-831-5 TR-9 T-832-5 TR-9A TM-13 T1231-5 TR-7 T1232-5 TR-7-A TM-63
-20 0.680 17.3 0.642 16.3 0.729 18.5 T-831-5 TR-9 T-832-5 TR-9A TM-13 T1231-5 TR-7 T1232-5 TR-7-A TM-63
-21 0.686 17.4 0.642 16.3 0.729 18.5 T-831-5 TR-9 T-832-5 TR-9A TM-13 T1231-5 TR-7 T1232-5 TR-7-A TM-63
-22 0.694 17.6 0.642 16.3 0.729 18.5 T-831-5 TR-9 T-832-5 TR-9A TM-13 T1231-5 TR-7 T1232-5 TR-7-A TM-63
7/8”-13 0.685 17.4 0.670 17.0 0.747 19.0 T-833-5 TR-9 T-834-5 TR-9A TM-14 - - - - -
-14 0.709 18.0 0.685 17.4 0.750 19.1 T-835-5 TR-10 T-836-5 TR-10A TM-15 - - - - -
-16 0.745 18.9 0.726 18.4 0.800 20.3 T-839-5 TR-11 T-840-5 TR-11A TM-840 - - - - -
-17-18 0.759 19.3 0.740 18.8 0.824 20.9 T-843-5 TR-11 T-844-5 TR-11A TM-17 - - - - -
-19 0.791 20.1 0.763 19.4 0.851 21.6 T-845-5 TR-11 T-846-5 TR-11A TM-18 - - - - -
-20 0.805 20.4 0.763 19.4 0.851 21.6 T-845-5 TR-11 T-846-5 TR-11A TM-18 - - - - -
-21 0.811 20.6 0.763 19.4 0.851 21.6 T-845-5 TR-11 T-846-5 TR-11A TM-18 - - - - -
-22 0.819 20.8 0.763 19.4 0.851 21.6 T-845-5 TR-11 T-846-5 TR-11A TM-18 - - - - -
