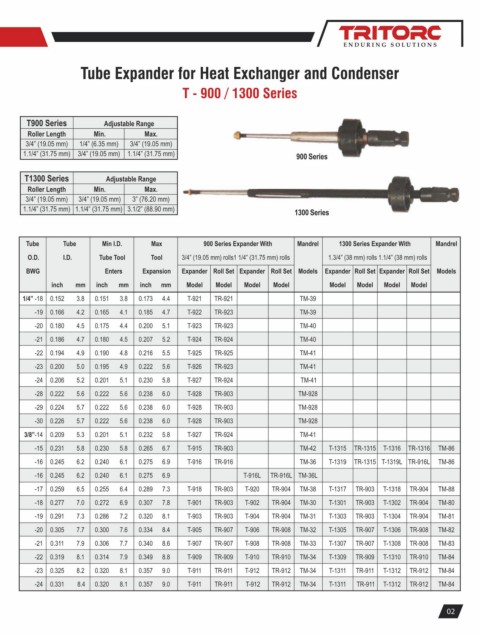

Tube Expander for Heat Exchanger and Condenser

T - 900 / 1300 Series

T900 Series Adjustable Range
Roller Length Min. Max.
3/4” (19.05 mm) 1/4” (6.35 mm) 3/4” (19.05 mm)
1.1/4” (31.75 mm) 3/4” (19.05 mm) 1.1/4” (31.75 mm)
900 Series

T1300 Series Adjustable Range
Roller Length Min. Max.
3/4” (19.05 mm) 3/4” (19.05 mm) 3” (76.20 mm)
1.1/4” (31.75 mm) 1.1/4” (31.75 mm) 3.1/2” (88.90 mm)
1300 Series

Tube Tube Min I.D. Max 900 Series Expander With Mandrel 1300 Series Expander With Mandrel

O.D. I.D. Tube Tool Tool 3/4” (19.05 mm) rolls1 1/4” (31.75 mm) rolls 1.3/4” (38 mm) rolls 1.1/4” (38 mm) rolls
BWG Enters Expansion Expander Roll Set Expander Roll Set Models Expander Roll Set Expander Roll Set Models
inch mm inch mm inch mm Model Model Model Model Model Model Model Model
1/4” -18 0.152 3.8 0.151 3.8 0.173 4.4 T-921 TR-921 TM-39
-19 0.166 4.2 0.165 4.1 0.185 4.7 T-922 TR-923 TM-39
-20 0.180 4.5 0.175 4.4 0.200 5.1 T-923 TR-923 TM-40
-21 0.186 4.7 0.180 4.5 0.207 5.2 T-924 TR-924 TM-40
-22 0.194 4.9 0.190 4.8 0.216 5.5 T-925 TR-925 TM-41
-23 0.200 5.0 0.195 4.9 0.222 5.6 T-926 TR-923 TM-41
-24 0.206 5.2 0.201 5.1 0.230 5.8 T-927 TR-924 TM-41

-28 0.222 5.6 0.222 5.6 0.238 6.0 T-928 TR-903 TM-928
-29 0.224 5.7 0.222 5.6 0.238 6.0 T-928 TR-903 TM-928
-30 0.226 5.7 0.222 5.6 0.238 6.0 T-928 TR-903 TM-928
3/8”-14 0.209 5.3 0.201 5.1 0.232 5.8 T-927 TR-924 TM-41
-15 0.231 5.8 0.230 5.8 0.265 6.7 T-915 TR-903 TM-42 T-1315 TR-1315 T-1316 TR-1316 TM-86
-16 0.245 6.2 0.240 6.1 0.275 6.9 T-916 TR-916 TM-36 T-1319 TR-1315 T-1319L TR-916L TM-86
-16 0.245 6.2 0.240 6.1 0.275 6.9 T-916L TR-916L TM-36L

-17 0.259 6.5 0.255 6.4 0.289 7.3 T-918 TR-903 T-920 TR-904 TM-38 T-1317 TR-903 T-1318 TR-904 TM-88
-18 0.277 7.0 0.272 6.9 0.307 7.8 T-901 TR-903 T-902 TR-904 TM-30 T-1301 TR-903 T-1302 TR-904 TM-80
-19 0.291 7.3 0.286 7.2 0.320 8.1 T-903 TR-903 T-904 TR-904 TM-31 T-1303 TR-903 T-1304 TR-904 TM-81
-20 0.305 7.7 0.300 7.6 0.334 8.4 T-905 TR-907 T-906 TR-908 TM-32 T-1305 TR-907 T-1306 TR-908 TM-82
-21 0.311 7.9 0.306 7.7 0.340 8.6 T-907 TR-907 T-908 TR-908 TM-33 T-1307 TR-907 T-1308 TR-908 TM-83
-22 0.319 8.1 0.314 7.9 0.349 8.8 T-909 TR-909 T-910 TR-910 TM-34 T-1309 TR-909 T-1310 TR-910 TM-84
-23 0.325 8.2 0.320 8.1 0.357 9.0 T-911 TR-911 T-912 TR-912 TM-34 T-1311 TR-911 T-1312 TR-912 TM-84
-24 0.331 8.4 0.320 8.1 0.357 9.0 T-911 TR-911 T-912 TR-912 TM-34 T-1311 TR-911 T-1312 TR-912 TM-84
