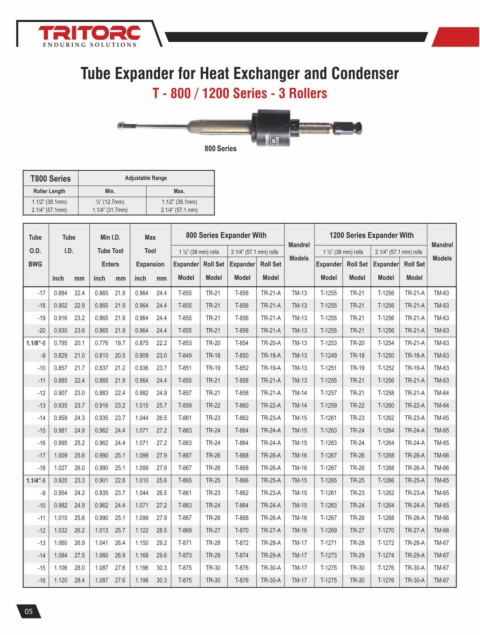

Page 8 - Tube Tool Catalogue

Tube Expander for Heat Exchanger and Condenser

T - 800 / 1200 Series - 3 Rollers

800 Series

T800 Series Adjustable Range
Roller Length Min. Max.
1.1/2” (38.1mm) ½” (12.7mm) 1.1/2” (38.1mm)
2.1/4” (57.1mm) 1.1/4” (31.7mm) 2.1/4” (57.1 mm)

Tube Tube Min I.D. Max 800 Series Expander With 1200 Series Expander With
Mandrel Mandrel
O.D. I.D. Tube Tool Tool 1 ½” (38 mm) rolls 2 1/4” (57.1 mm) rolls 1 ½” (38 mm) rolls 2 1/4” (57.1 mm) rolls
Models Models
BWG Enters Expansion Expander Roll Set Expander Roll Set Expander Roll Set Expander Roll Set
inch mm inch mm inch mm Model Model Model Model Model Model Model Model
-17 0.884 22.4 0.865 21.9 0.964 24.4 T-855 TR-21 T-856 TR-21-A TM-13 T-1255 TR-21 T-1256 TR-21-A TM-63
-18 0.902 22.9 0.865 21.9 0.964 24.4 T-855 TR-21 T-856 TR-21-A TM-13 T-1255 TR-21 T-1256 TR-21-A TM-63
-19 0.916 23.2 0.865 21.9 0.964 24.4 T-855 TR-21 T-856 TR-21-A TM-13 T-1255 TR-21 T-1256 TR-21-A TM-63
-20 0.930 23.6 0.865 21.9 0.964 24.4 T-855 TR-21 T-856 TR-21-A TM-13 T-1255 TR-21 T-1256 TR-21-A TM-63
1.1/8”-8 0.795 20.1 0.776 19.7 0.875 22.2 T-853 TR-20 T-854 TR-20-A TM-13 T-1253 TR-20 T-1254 TR-21-A TM-63
-9 0.829 21.0 0.810 20.5 0.909 23.0 T-849 TR-18 T-850 TR-18-A TM-13 T-1249 TR-18 T-1250 TR-18-A TM-63
-10 0.857 21.7 0.837 21.2 0.936 23.7 T-851 TR-19 T-852 TR-19-A TM-13 T-1251 TR-19 T-1252 TR-19-A TM-63
-11 0.885 22.4 0.865 21.9 0.964 24.4 T-855 TR-21 T-856 TR-21-A TM-13 T-1255 TR-21 T-1256 TR-21-A TM-63
-12 0.907 23.0 0.883 22.4 0.982 24.9 T-857 TR-21 T-858 TR-21-A TM-14 T-1257 TR-21 T-1258 TR-21-A TM-64
-13 0.935 23.7 0.916 23.2 1.015 25.7 T-859 TR-22 T-860 TR-22-A TM-14 T-1259 TR-22 T-1260 TR-22-A TM-64
-14 0.959 24.3 0.935 23.7 1.044 26.5 T-861 TR-23 T-862 TR-23-A TM-15 T-1261 TR-23 T-1262 TR-23-A TM-65
-15 0.981 24.9 0.962 24.4 1.071 27.2 T-863 TR-24 T-864 TR-24-A TM-15 T-1263 TR-24 T-1264 TR-24-A TM-65
-16 0.995 25.2 0.962 24.4 1.071 27.2 T-863 TR-24 T-864 TR-24-A TM-15 T-1263 TR-24 T-1264 TR-24-A TM-65
-17 1.009 25.6 0.990 25.1 1.099 27.9 T-867 TR-26 T-868 TR-26-A TM-16 T-1267 TR-26 T-1268 TR-26-A TM-66
-18 1.027 26.0 0.990 25.1 1.099 27.9 T-867 TR-26 T-868 TR-26-A TM-16 T-1267 TR-26 T-1268 TR-26-A TM-66
1.1/4”-8 0.920 23.3 0.901 22.8 1.010 25.6 T-865 TR-25 T-866 TR-25-A TM-15 T-1265 TR-25 T-1266 TR-25-A TM-65
-9 0.954 24.2 0.935 23.7 1.044 26.5 T-861 TR-23 T-862 TR-23-A TM-15 T-1261 TR-23 T-1262 TR-23-A TM-65
-10 0.982 24.9 0.962 24.4 1.071 27.2 T-863 TR-24 T-864 TR-24-A TM-15 T-1263 TR-24 T-1264 TR-24-A TM-65
-11 1.010 25.6 0.990 25.1 1.099 27.9 T-867 TR-26 T-868 TR-26-A TM-16 T-1267 TR-26 T-1268 TR-26-A TM-66
-12 1.032 26.2 1.013 25.7 1.122 28.5 T-869 TR-27 T-870 TR-27-A TM-16 T-1269 TR-27 T-1270 TR-27-A TM-66
-13 1.060 26.9 1.041 26.4 1.150 29.2 T-871 TR-28 T-872 TR-28-A TM-17 T-1271 TR-28 T-1272 TR-28-A TM-67
-14 1.084 27.5 1.060 26.9 1.169 29.6 T-873 TR-29 T-874 TR-29-A TM-17 T-1273 TR-29 T-1274 TR-29-A TM-67
-15 1.106 28.0 1.087 27.6 1.196 30.3 T-875 TR-30 T-876 TR-30-A TM-17 T-1275 TR-30 T-1276 TR-30-A TM-67
-16 1.120 28.4 1.087 27.6 1.196 30.3 T-875 TR-30 T-876 TR-30-A TM-17 T-1275 TR-30 T-1276 TR-30-A TM-67

05
