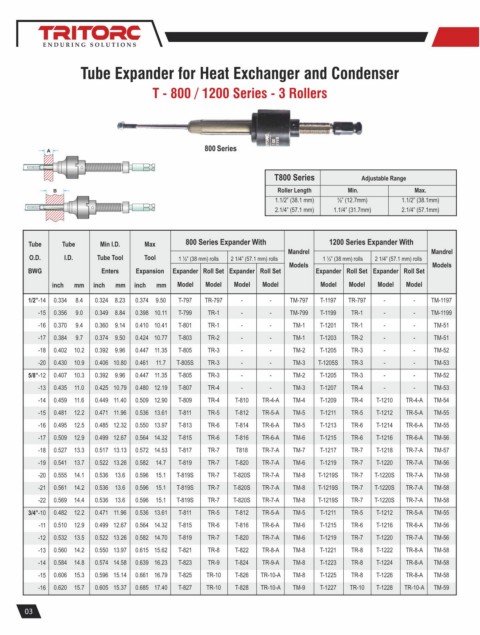

Page 6 - Tube Tool Catalogue

Tube Expander for Heat Exchanger and Condenser

T - 800 / 1200 Series - 3 Rollers

800 Series

T800 Series Adjustable Range
Roller Length Min. Max.
1.1/2” (38.1 mm) ½” (12.7mm) 1.1/2” (38.1mm)
2.1/4” (57.1 mm) 1.1/4” (31.7mm) 2.1/4” (57.1mm)

Tube Tube Min I.D. Max 800 Series Expander With 1200 Series Expander With
Mandrel Mandrel
O.D. I.D. Tube Tool Tool 1 ½” (38 mm) rolls 2 1/4” (57.1 mm) rolls 1 ½” (38 mm) rolls 2 1/4” (57.1 mm) rolls
Models Models
BWG Enters Expansion Expander Roll Set Expander Roll Set Expander Roll Set Expander Roll Set
inch mm inch mm inch mm Model Model Model Model Model Model Model Model
1/2”-14 0.334 8.4 0.324 8.23 0.374 9.50 T-797 TR-797 - - TM-797 T-1197 TR-797 - - TM-1197
-15 0.356 9.0 0.349 8.84 0.398 10.11 T-799 TR-1 - - TM-799 T-1199 TR-1 - - TM-1199
-16 0.370 9.4 0.360 9.14 0.410 10.41 T-801 TR-1 - - TM-1 T-1201 TR-1 - - TM-51
-17 0.384 9.7 0.374 9.50 0.424 10.77 T-803 TR-2 - - TM-1 T-1203 TR-2 - - TM-51
-18 0.402 10.2 0.392 9.96 0.447 11.35 T-805 TR-3 - - TM-2 T-1205 TR-3 - - TM-52
-20 0.430 10.9 0.406 10.80 0.461 11.7 T-805S TR-3 - - TM-3 T-1205S TR-3 - - TM-53
5/8”-12 0.407 10.3 0.392 9.96 0.447 11.35 T-805 TR-3 - - TM-2 T-1205 TR-3 - - TM-52
-13 0.435 11.0 0.425 10.79 0.480 12.19 T-807 TR-4 - - TM-3 T-1207 TR-4 - - TM-53
-14 0.459 11.6 0.449 11.40 0.509 12.90 T-809 TR-4 T-810 TR-4-A TM-4 T-1209 TR-4 T-1210 TR-4-A TM-54
-15 0.481 12.2 0.471 11.96 0.536 13.61 T-811 TR-5 T-812 TR-5-A TM-5 T-1211 TR-5 T-1212 TR-5-A TM-55
-16 0.495 12.5 0.485 12.32 0.550 13.97 T-813 TR-6 T-814 TR-6-A TM-5 T-1213 TR-6 T-1214 TR-6-A TM-55
-17 0.509 12.9 0.499 12.67 0.564 14.32 T-815 TR-6 T-816 TR-6-A TM-6 T-1215 TR-6 T-1216 TR-6-A TM-56
-18 0.527 13.3 0.517 13.13 0.572 14.53 T-817 TR-7 T818 TR-7-A TM-7 T-1217 TR-7 T-1218 TR-7-A TM-57
-19 0.541 13.7 0.522 13.26 0.582 14.7 T-819 TR-7 T-820 TR-7-A TM-6 T-1219 TR-7 T-1220 TR-7-A TM-56
-20 0.555 14.1 0.536 13.6 0.596 15.1 T-819S TR-7 T-820S TR-7-A TM-8 T-1219S TR-7 T-1220S TR-7-A TM-58
-21 0.561 14.2 0.536 13.6 0.596 15.1 T-819S TR-7 T-820S TR-7-A TM-8 T-1219S TR-7 T-1220S TR-7-A TM-58
-22 0.569 14.4 0.536 13.6 0.596 15.1 T-819S TR-7 T-820S TR-7-A TM-8 T-1219S TR-7 T-1220S TR-7-A TM-58
3/4”-10 0.482 12.2 0.471 11.96 0.536 13.61 T-811 TR-5 T-812 TR-5-A TM-5 T-1211 TR-5 T-1212 TR-5-A TM-55
-11 0.510 12.9 0.499 12.67 0.564 14.32 T-815 TR-6 T-816 TR-6-A TM-6 T-1215 TR-6 T-1216 TR-6-A TM-56
-12 0.532 13.5 0.522 13.26 0.582 14.70 T-819 TR-7 T-820 TR-7-A TM-6 T-1219 TR-7 T-1220 TR-7-A TM-56
-13 0.560 14.2 0.550 13.97 0.615 15.62 T-821 TR-8 T-822 TR-8-A TM-8 T-1221 TR-8 T-1222 TR-8-A TM-58
-14 0.584 14.8 0.574 14.58 0.639 16.23 T-823 TR-9 T-824 TR-9-A TM-8 T-1223 TR-8 T-1224 TR-8-A TM-58
-15 0.606 15.3 0.596 15.14 0.661 16.79 T-825 TR-10 T-826 TR-10-A TM-8 T-1225 TR-8 T-1226 TR-8-A TM-58
-16 0.620 15.7 0.605 15.37 0.685 17.40 T-827 TR-10 T-828 TR-10-A TM-9 T-1227 TR-10 T-1228 TR-10-A TM-59
