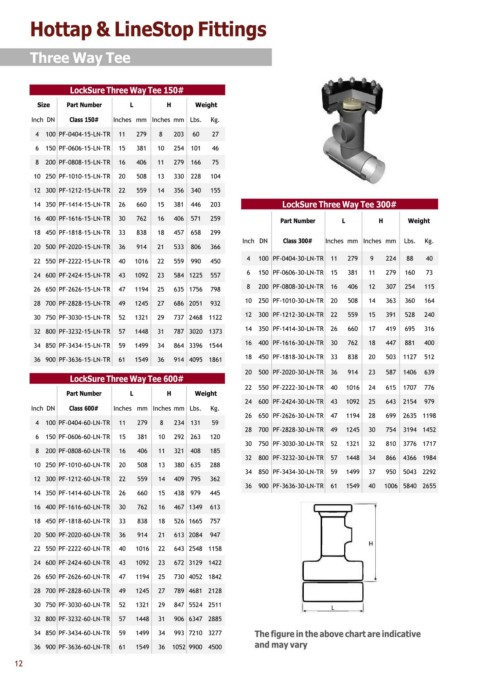

Page 8 - HOT TAPPING CATALOG
P. 8
Hottap & LineStop Fittings
Three Way Tee
LockSure Three Way Tee 150#
Size Part Number L H Weight
Inch DN Class 150# Inches mm Inches mm Lbs. Kg.
4 100 PF-0404-15-LN-TR 11 279 8 203 60 27
6 150 PF-0606-15-LN-TR 15 381 10 254 101 46
8 200 PF-0808-15-LN-TR 16 406 11 279 166 75
10 250 PF-1010-15-LN-TR 20 508 13 330 228 104
12 300 PF-1212-15-LN-TR 22 559 14 356 340 155
14 350 PF-1414-15-LN-TR 26 660 15 381 446 203 LockSure Three Way Tee 300#
16 400 PF-1616-15-LN-TR 30 762 16 406 571 259
Part Number L H Weight
18 450 PF-1818-15-LN-TR 33 838 18 457 658 299 Inch DN Class 300# Inches mm Inches mm Lbs. Kg.
20 500 PF-2020-15-LN-TR 36 914 21 533 806 366
22 550 PF-2222-15-LN-TR 40 1016 22 559 990 450 4 100 PF-0404-30-LN-TR 11 279 9 224 88 40
24 600 PF-2424-15-LN-TR 43 1092 23 584 1225 557 6 150 PF-0606-30-LN-TR 15 381 11 279 160 73
26 650 PF-2626-15-LN-TR 47 1194 25 635 1756 798 8 200 PF-0808-30-LN-TR 16 406 12 307 254 115
28 700 PF-2828-15-LN-TR 49 1245 27 686 2051 932 10 250 PF-1010-30-LN-TR 20 508 14 363 360 164
30 750 PF-3030-15-LN-TR 52 1321 29 737 2468 1122 12 300 PF-1212-30-LN-TR 22 559 15 391 528 240
32 800 PF-3232-15-LN-TR 57 1448 31 787 3020 1373 14 350 PF-1414-30-LN-TR 26 660 17 419 695 316
34 850 PF-3434-15-LN-TR 59 1499 34 864 3396 1544 16 400 PF-1616-30-LN-TR 30 762 18 447 881 400
18 450 PF-1818-30-LN-TR 33 838 20 503 1127 512
36 900 PF-3636-15-LN-TR 61 1549 36 914 4095 1861 20 500 PF-2020-30-LN-TR 36 914 23 587 1406 639
LockSure Three Way Tee 600#
Part Number L H Weight 22 550 PF-2222-30-LN-TR 40 1016 24 615 1707 776
24 600 PF-2424-30-LN-TR 43 1092 25 643 2154 979
Inch DN Class 600# Inches mm Inches mm Lbs. Kg.
26 650 PF-2626-30-LN-TR 47 1194 28 699 2635 1198
4 100 PF-0404-60-LN-TR 11 279 8 234 131 59
28 700 PF-2828-30-LN-TR 49 1245 30 754 3194 1452
6 150 PF-0606-60-LN-TR 15 381 10 292 263 120
30 750 PF-3030-30-LN-TR 52 1321 32 810 3776 1717
8 200 PF-0808-60-LN-TR 16 406 11 321 408 185
32 800 PF-3232-30-LN-TR 57 1448 34 866 4366 1984
10 250 PF-1010-60-LN-TR 20 508 13 380 635 288
34 850 PF-3434-30-LN-TR 59 1499 37 950 5043 2292
12 300 PF-1212-60-LN-TR 22 559 14 409 795 362
36 900 PF-3636-30-LN-TR 61 1549 40 1006 5840 2655
14 350 PF-1414-60-LN-TR 26 660 15 438 979 445
16 400 PF-1616-60-LN-TR 30 762 16 467 1349 613
18 450 PF-1818-60-LN-TR 33 838 18 526 1665 757
20 500 PF-2020-60-LN-TR 36 914 21 613 2084 947
22 550 PF-2222-60-LN-TR 40 1016 22 643 2548 1158
24 600 PF-2424-60-LN-TR 43 1092 23 672 3129 1422
26 650 PF-2626-60-LN-TR 47 1194 25 730 4052 1842
28 700 PF-2828-60-LN-TR 49 1245 27 789 4681 2128
30 750 PF-3030-60-LN-TR 52 1321 29 847 5524 2511
32 800 PF-3232-60-LN-TR 57 1448 31 906 6347 2885
34 850 PF-3434-60-LN-TR 59 1499 34 993 7210 3277 The figure in the above chart are indicative
36 900 PF-3636-60-LN-TR 61 1549 36 1052 9900 4500 and may vary
