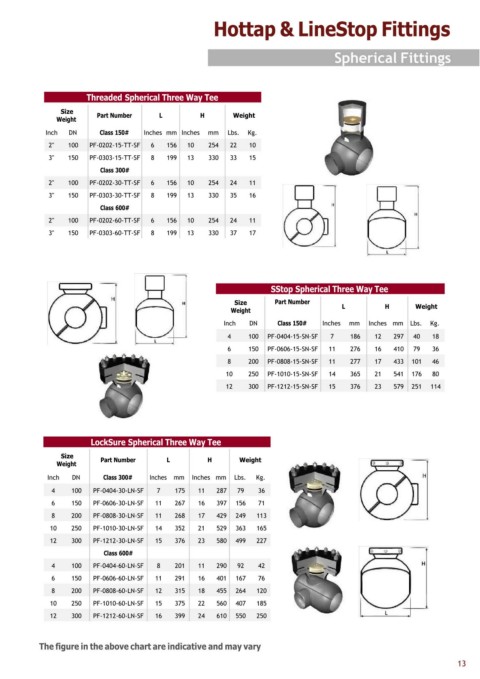

Hottap & LineStop Fittings

Spherical Fittings

Threaded Spherical Three Way Tee
Size
Weight Part Number L H Weight

Inch DN Class 150# Inches mm Inches mm Lbs. Kg.
2" 100 PF-0202-15-TT-SF 6 156 10 254 22 10
3" 150 PF-0303-15-TT-SF 8 199 13 330 33 15
Class 300#
2" 100 PF-0202-30-TT-SF 6 156 10 254 24 11
3" 150 PF-0303-30-TT-SF 8 199 13 330 35 16
Class 600#
2" 100 PF-0202-60-TT-SF 6 156 10 254 24 11
3" 150 PF-0303-60-TT-SF 8 199 13 330 37 17

SStop Spherical Three Way Tee
Size Part Number
Weight L H Weight

Inch DN Class 150# Inches mm Inches mm Lbs. Kg.
4 100 PF-0404-15-SN-SF 7 186 12 297 40 18
6 150 PF-0606-15-SN-SF 11 276 16 410 79 36
8 200 PF-0808-15-SN-SF 11 277 17 433 101 46
10 250 PF-1010-15-SN-SF 14 365 21 541 176 80
12 300 PF-1212-15-SN-SF 15 376 23 579 251 114

LockSure Spherical Three Way Tee
Size
Weight Part Number L H Weight

Inch DN Class 300# Inches mm Inches mm Lbs. Kg.
4 100 PF-0404-30-LN-SF 7 175 11 287 79 36
6 150 PF-0606-30-LN-SF 11 267 16 397 156 71
8 200 PF-0808-30-LN-SF 11 268 17 429 249 113
10 250 PF-1010-30-LN-SF 14 352 21 529 363 165
12 300 PF-1212-30-LN-SF 15 376 23 580 499 227
Class 600#
4 100 PF-0404-60-LN-SF 8 201 11 290 92 42
6 150 PF-0606-60-LN-SF 11 291 16 401 167 76
8 200 PF-0808-60-LN-SF 12 315 18 455 264 120
10 250 PF-1010-60-LN-SF 15 375 22 560 407 185
12 300 PF-1212-60-LN-SF 16 399 24 610 550 250

The figure in the above chart are indicative and may vary
