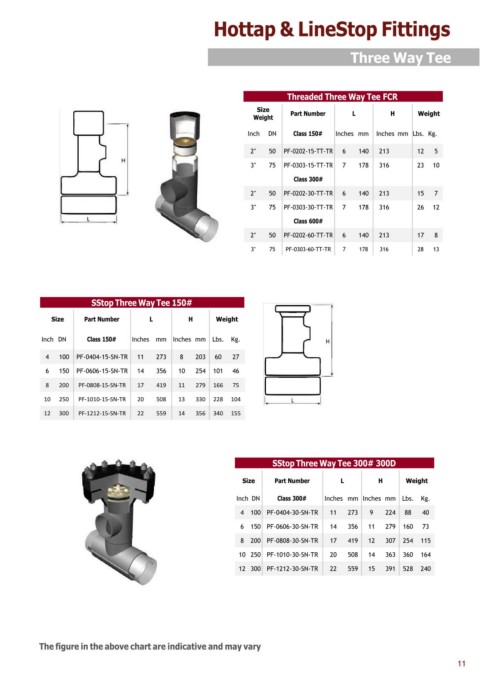

Page 7 - HOT TAPPING CATALOG
P. 7
Hottap & LineStop Fittings
Three Way Tee
Threaded Three Way Tee FCR
Size
Weight Part Number L H Weight
Inch DN Class 150# Inches mm Inches mm Lbs. Kg.
2" 50 PF-0202-15-TT-TR 6 140 213 12 5
3" 75 PF-0303-15-TT-TR 7 178 316 23 10
Class 300#
2" 50 PF-0202-30-TT-TR 6 140 213 15 7
3" 75 PF-0303-30-TT-TR 7 178 316 26 12
Class 600#
2" 50 PF-0202-60-TT-TR 6 140 213 17 8
3" 75 PF-0303-60-TT-TR 7 178 316 28 13
SStop Three Way Tee 150#
Size Part Number L H Weight
Inch DN Class 150# Inches mm Inches mm Lbs. Kg.
4 100 PF-0404-15-SN-TR 11 273 8 203 60 27
6 150 PF-0606-15-SN-TR 14 356 10 254 101 46
8 200 PF-0808-15-SN-TR 17 419 11 279 166 75
10 250 PF-1010-15-SN-TR 20 508 13 330 228 104
12 300 PF-1212-15-SN-TR 22 559 14 356 340 155
SStop Three Way Tee 300# 300D
Size Part Number L H Weight
Inch DN Class 300# Inches mm Inches mm Lbs. Kg.
4 100 PF-0404-30-SN-TR 11 273 9 224 88 40
6 150 PF-0606-30-SN-TR 14 356 11 279 160 73
8 200 PF-0808-30-SN-TR 17 419 12 307 254 115
10 250 PF-1010-30-SN-TR 20 508 14 363 360 164
12 300 PF-1212-30-SN-TR 22 559 15 391 528 240
The figure in the above chart are indicative and may vary
11
