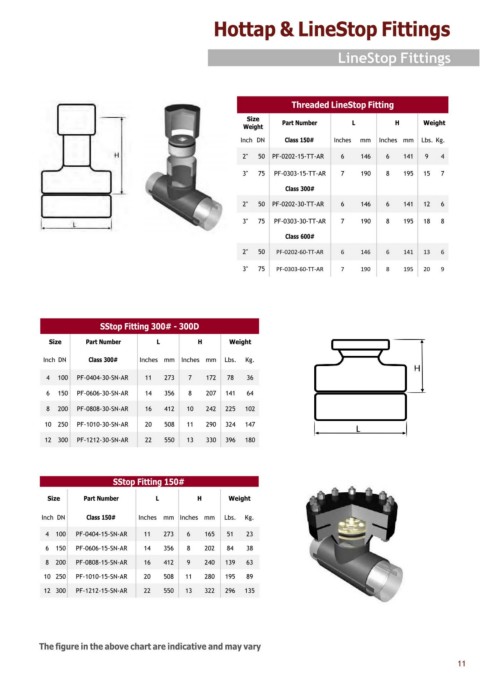

Hottap & LineStop Fittings
LineStop Fittings
Threaded LineStop Fitting
Size
Weight Part Number L H Weight
Inch DN Class 150# Inches mm Inches mm Lbs. Kg.
2" 50 PF-0202-15-TT-AR 6 146 6 141 9 4
3" 75 PF-0303-15-TT-AR 7 190 8 195 15 7
Class 300#
2" 50 PF-0202-30-TT-AR 6 146 6 141 12 6
3" 75 PF-0303-30-TT-AR 7 190 8 195 18 8
Class 600#
2" 50 PF-0202-60-TT-AR 6 146 6 141 13 6
3" 75 PF-0303-60-TT-AR 7 190 8 195 20 9
SStop Fitting 300# - 300D
Size Part Number L H Weight
Inch DN Class 300# Inches mm Inches mm Lbs. Kg.
4 100 PF-0404-30-SN-AR 11 273 7 172 78 36
6 150 PF-0606-30-SN-AR 14 356 8 207 141 64
8 200 PF-0808-30-SN-AR 16 412 10 242 225 102
10 250 PF-1010-30-SN-AR 20 508 11 290 324 147
12 300 PF-1212-30-SN-AR 22 550 13 330 396 180
SStop Fitting 150#
Size Part Number L H Weight
Inch DN Class 150# Inches mm Inches mm Lbs. Kg.
4 100 PF-0404-15-SN-AR 11 273 6 165 51 23
6 150 PF-0606-15-SN-AR 14 356 8 202 84 38
8 200 PF-0808-15-SN-AR 16 412 9 240 139 63
10 250 PF-1010-15-SN-AR 20 508 11 280 195 89
12 300 PF-1212-15-SN-AR 22 550 13 322 296 135
The figure in the above chart are indicative and may vary
