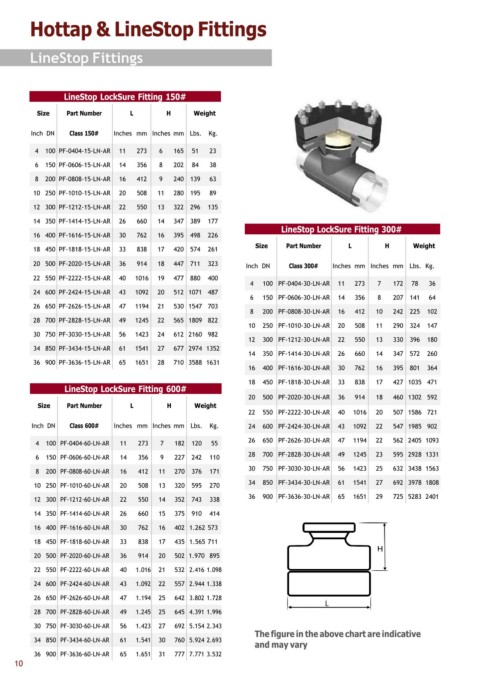

Page 6 - HOT TAPPING CATALOG
P. 6
Hottap & LineStop Fittings
LineStop Fittings
LineStop LockSure Fitting 150#
Size Part Number L H Weight
Inch DN Class 150# Inches mm Inches mm Lbs. Kg.
4 100 PF-0404-15-LN-AR 11 273 6 165 51 23
6 150 PF-0606-15-LN-AR 14 356 8 202 84 38
8 200 PF-0808-15-LN-AR 16 412 9 240 139 63
10 250 PF-1010-15-LN-AR 20 508 11 280 195 89
12 300 PF-1212-15-LN-AR 22 550 13 322 296 135
14 350 PF-1414-15-LN-AR 26 660 14 347 389 177
LineStop LockSure Fitting 300#
16 400 PF-1616-15-LN-AR 30 762 16 395 498 226
Size Part Number L H Weight
18 450 PF-1818-15-LN-AR 33 838 17 420 574 261
20 500 PF-2020-15-LN-AR 36 914 18 447 711 323 Inch DN Class 300# Inches mm Inches mm Lbs. Kg.
22 550 PF-2222-15-LN-AR 40 1016 19 477 880 400
4 100 PF-0404-30-LN-AR 11 273 7 172 78 36
24 600 PF-2424-15-LN-AR 43 1092 20 512 1071 487
6 150 PF-0606-30-LN-AR 14 356 8 207 141 64
26 650 PF-2626-15-LN-AR 47 1194 21 530 1547 703
8 200 PF-0808-30-LN-AR 16 412 10 242 225 102
28 700 PF-2828-15-LN-AR 49 1245 22 565 1809 822
10 250 PF-1010-30-LN-AR 20 508 11 290 324 147
30 750 PF-3030-15-LN-AR 56 1423 24 612 2160 982
12 300 PF-1212-30-LN-AR 22 550 13 330 396 180
34 850 PF-3434-15-LN-AR 61 1541 27 677 2974 1352
14 350 PF-1414-30-LN-AR 26 660 14 347 572 260
36 900 PF-3636-15-LN-AR 65 1651 28 710 3588 1631 16 400 PF-1616-30-LN-AR 30 762 16 395 801 364
LineStop LockSure Fitting 600# 18 450 PF-1818-30-LN-AR 33 838 17 427 1035 471
20 500 PF-2020-30-LN-AR 36 914 18 460 1302 592
Size Part Number L H Weight
22 550 PF-2222-30-LN-AR 40 1016 20 507 1586 721
Inch DN Class 600# Inches mm Inches mm Lbs. Kg. 24 600 PF-2424-30-LN-AR 43 1092 22 547 1985 902
4 100 PF-0404-60-LN-AR 11 273 7 182 120 55 26 650 PF-2626-30-LN-AR 47 1194 22 562 2405 1093
6 150 PF-0606-60-LN-AR 14 356 9 227 242 110 28 700 PF-2828-30-LN-AR 49 1245 23 595 2928 1331
8 200 PF-0808-60-LN-AR 16 412 11 270 376 171 30 750 PF-3030-30-LN-AR 56 1423 25 632 3438 1563
10 250 PF-1010-60-LN-AR 20 508 13 320 595 270 34 850 PF-3434-30-LN-AR 61 1541 27 692 3978 1808
12 300 PF-1212-60-LN-AR 22 550 14 352 743 338 36 900 PF-3636-30-LN-AR 65 1651 29 725 5283 2401
14 350 PF-1414-60-LN-AR 26 660 15 375 910 414
16 400 PF-1616-60-LN-AR 30 762 16 402 1.262 573
18 450 PF-1818-60-LN-AR 33 838 17 435 1.565 711
20 500 PF-2020-60-LN-AR 36 914 20 502 1.970 895
22 550 PF-2222-60-LN-AR 40 1.016 21 532 2.416 1.098
24 600 PF-2424-60-LN-AR 43 1.092 22 557 2.944 1.338
26 650 PF-2626-60-LN-AR 47 1.194 25 642 3.802 1.728
28 700 PF-2828-60-LN-AR 49 1.245 25 645 4.391 1.996
30 750 PF-3030-60-LN-AR 56 1.423 27 692 5.154 2.343
The figure in the above chart are indicative
34 850 PF-3434-60-LN-AR 61 1.541 30 760 5.924 2.693
and may vary
36 900 PF-3636-60-LN-AR 65 1.651 31 777 7.771 3.532
