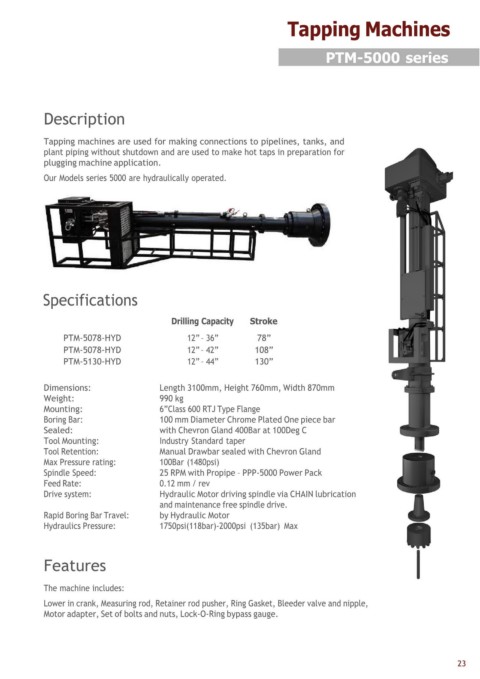

Tapping Machines
PTM-5000 series
Description
Tapping machines are used for making connections to pipelines, tanks, and
plant piping without shutdown and are used to make hot taps in preparation for
plugging machine application.
Our Models series 5000 are hydraulically operated.
Specifications
Drilling Capacity Stroke
PTM-5078-HYD 12” – 36” 78”
PTM-5078-HYD 12” – 42” 108”
PTM-5130-HYD 12” – 44” 130”
Dimensions: Length 3100mm, Height 760mm, Width 870mm
Weight: 990 kg
Mounting: 6”Class 600 RTJ Type Flange
Boring Bar: 100 mm Diameter Chrome Plated One piece bar
Sealed: with Chevron Gland 400Bar at 100Deg C
Tool Mounting: Industry Standard taper
Tool Retention: Manual Drawbar sealed with Chevron Gland
Max Pressure rating: 100Bar (1480psi)
Spindle Speed: 25 RPM with Propipe – PPP-5000 Power Pack
Feed Rate: 0.12 mm / rev
Drive system: Hydraulic Motor driving spindle via CHAIN lubrication
and maintenance free spindle drive.
Rapid Boring Bar Travel: by Hydraulic Motor
Hydraulics Pressure: 1750psi(118bar)-2000psi (135bar) Max
Features
The machine includes:
Lower in crank, Measuring rod, Retainer rod pusher, Ring Gasket, Bleeder valve and nipple,
Motor adapter, Set of bolts and nuts, Lock-O-Ring bypass gauge.
