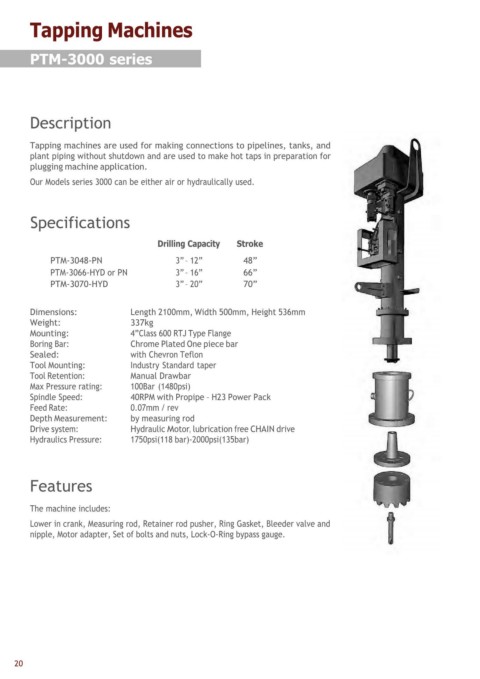

Tapping Machines
PTM-3000 series
Description
Tapping machines are used for making connections to pipelines, tanks, and
plant piping without shutdown and are used to make hot taps in preparation for
plugging machine application.
Our Models series 3000 can be either air or hydraulically used.
Specifications
Drilling Capacity Stroke
PTM-3048-PN 3” – 12” 48”
PTM-3066-HYD or PN 3” – 16” 66”
PTM-3070-HYD 3” – 20” 70”
Dimensions: Length 2100mm, Width 500mm, Height 536mm
Weight: 337kg
Mounting: 4”Class 600 RTJ Type Flange
Boring Bar: Chrome Plated One piece bar
Sealed: with Chevron Teflon
Tool Mounting: Industry Standard taper
Tool Retention: Manual Drawbar
Max Pressure rating: 100Bar (1480psi)
Spindle Speed: 40RPM with Propipe – H23 Power Pack
Feed Rate: 0.07mm / rev
Depth Measurement: by measuring rod
Drive system: Hydraulic Motor, lubrication free CHAIN drive
Hydraulics Pressure: 1750psi(118 bar)-2000psi(135bar)
Features
The machine includes:
Lower in crank, Measuring rod, Retainer rod pusher, Ring Gasket, Bleeder valve and
nipple, Motor adapter, Set of bolts and nuts, Lock-O-Ring bypass gauge.
